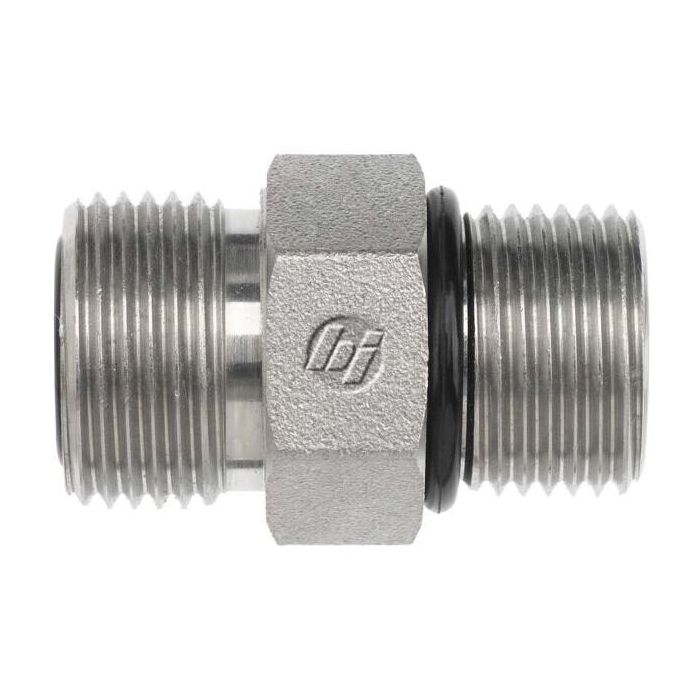

24MFS-20MAORB STRAIGHT

Description & Features

The 24MFS-20MAORB STRAIGHT fitting is an essential component for hydraulic systems, facilitating secure connections with its precise threading. Designed for reliability, it features a robust construction with a Brennan A Thread size of 2-12 and Brennan B Thread size of 1-5/8-12, ensuring compatibility with a range of hydraulic setups. With a tube outer diameter of 1-1/2 inches, this fitting is perfectly suited for industrial applications where durability and precision are paramount. The fitting's dimensions include a hex size of 2.125 inches and a length of 2.348 inches, providing a compact yet sturdy solution for complex hydraulic assemblies.

Manufactured by Brennan Industries, this fitting belongs to the FS6400-O series, known for its high-quality standards and reliability in demanding environments. Its alternate part numbers, AFF1852T2420S and FF6400-24-20, offer flexibility in sourcing and compatibility, ensuring seamless integration into existing or new systems.

SKU: FS6400-24-20-O

Supplier Part Number (MPN): FS6400-24-20-O

Alternate Part Numbers: AFF1852T2420S, FF6400-24-20

Specifications

Brand BRENNAN	a Drill Dimensions 1.26 in	b Drill Dimensions 1.024 in	Connection Size 1 1-1/2 in	Connection Size 2 1-1/4 in	Connection Type Male ORFS, Male SAE ORB	Connection Type 1 Male SAE ORFS	Connection Type 2 Male SAE ORB	Dimension Standards SAE J1453, SAE J1926	Dimensions 2.348 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 2-1/8 in	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 5000 psi	Operating Temperature -40 to 250 deg F	Series FS6400-O Series	Thread Size 2-12, 1-5/8-12	Tube Outside Diameter 1-1/2 in

Similar Products

Model Number	Connection Size 1	Connection Type 1	Connection Size 2	Thread Size
FF6400-06-05	3/8 in	Male SAE ORFS	5/16 in	11/16-16 x 1/2-20
FF6400-06-10	3/8 in	Male SAE ORFS	5/8 in	11/16-16, 7/8-14
FF6400-10-10	5/8 in	Male SAE ORFS	5/8 in	1-14 x 1-14 x 7/8-14
FF6400-12-08	3/4 in	Male SAE ORFS	1/2 in	1-3/16-12, 3/4-16
FS6400-04-04-O	1/4 in	Male SAE ORFS	1/4 in	9/16-18, 7/16-20
FS6400-04-06-O	1/4 in	Male SAE ORFS	3/8 in	9/16-18
FS6400-04-08-O	1/4 in	Male SAE ORFS	1/2 in	3/4-16, 9/16-18
FS6400-04-10-O	1/4 in	Male SAE ORFS	5/8 in	7/8-14 x 9/16-18
FS6400-04-12-O	1/4 in	Male SAE ORFS	3/4 in	1-1/16-12 x 9/16-18
FS6400-06-04-O	3/8 in	Male SAE ORFS	1/4 in	11/16-16 x 7/16-20
FS6400-06-06-O	3/8 in	Male SAE ORFS	3/8 in	11/16-16, 9/16-18
FS6400-06-08-O	3/8 in	Male SAE ORFS	1/2 in	11/16-16 x 3/4-16
FS6400-08-06-O	1/2 in	Male SAE ORFS	3/8 in	13/16-16 x 9/16-18 x 13/16-16
FS6400-08-08-O	1/2 in	Male SAE ORFS	1/2 in	13/16-16 x 3/4-16
FS6400-08-10-O	1/2 in	Male SAE ORFS	5/8 in	13/16-16 x 7/8-14
FS6400-08-16-O	1/2 in	Male SAE ORFS	1 in	13/16-16, 1-5/16-12
FS6400-10-12-O	5/8 in	Male SAE ORFS	3/4 in	1-14 x 1-1/16-12
FS6400-10-16-O	5/8 in	Male SAE ORFS	1 in	1-14 x 1-14 x 7/8-14
FS6400-12-10-O	3/4 in	Male SAE ORFS	5/8 in	1-3/16-12, 7/8-14
FS6400-12-12-O	3/4 in	Male SAE ORFS	3/4 in	1-3/16-16 x 1-1/16-12
FS6400-12-16-O	3/4 in	Male SAE ORFS	1 in	1-3/16-12 x 1-5/16-12
FS6400-12-20-O	3/4 in	Male SAE ORFS	1-1/4 in	1-3/16-12 x 1-5/8-12
FS6400-16-08-O	1 in	Male SAE ORFS	1/2 in	1-7/16-12, 3/4-16
FS6400-16-12-O	1 in	Male SAE ORFS	3/4 in	1-7/16-12 x 1-1/16-12
FS6400-16-20-O	1 in	Male SAE ORFS	1-1/4 in	1-7/16-12, 1-5/8-12
FS6400-16-24-O	1 in	Male SAE ORFS	1-1/2 in	1-7/16-12 x 1-7/8-12
FS6400-20-20-O Steel Male ORS To ORB Adapter	1-1/4 in	Male ORFS	1-1/4 in	1-11/16-12, 1-5/8-12
FS6400-20-24-O	1-1/4 in	Male SAE ORFS	1-1/2 in	1-11/16-12, 1-7/8-12
FS6400-24-24-O	1-1/2 in	Male SAE ORFS	1-1/2 in	2-12 x 1-7/8-12
