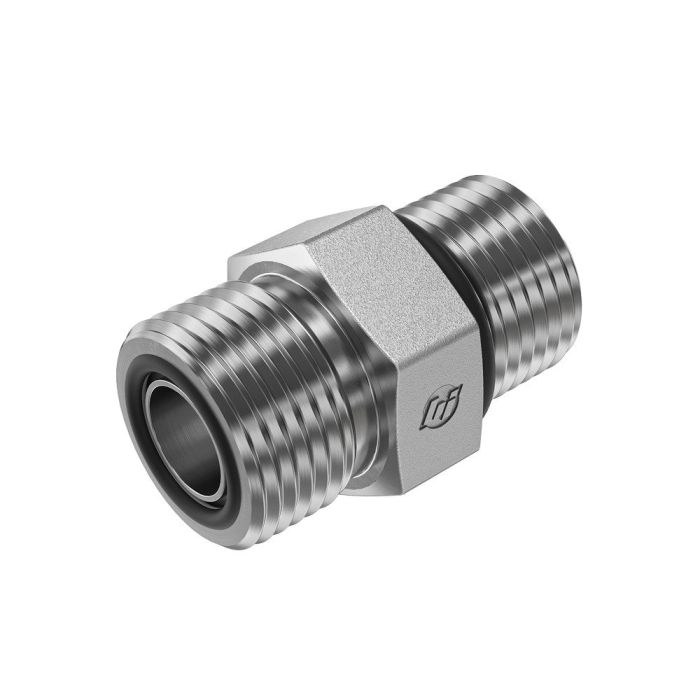

main product photo

24MFS-24MAORB STRAIGHT

Ask A Question

Description & Features

This straight fitting, the 24MFS-24MAORB STRAIGHT, features a 1-1/2 inch tube OD.

The Brennan A drill size is 1.260 with a 2-12 thread, while the Brennan B drill size is 1.260 with a 1-7/8-12 thread. It has a 2.125 inch hex size and an overall length of 2.128 inches. This fitting belongs to the FS6400-O series.

SKU: FS6400-24-24-O

Supplier Part Number (MPN): FS6400-24-24-O

Alternate Part Numbers: AFF1852T2424S, FF6400-24-24

Specifications

Brand
BRENNAN
a Drill Dimensions
1.26 in
b Drill Dimensions
1.26 in
Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1453, SAE J1926
Dimensions
2.128 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
2-1/8 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
5000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6400-O Series
Thread Size
2-12 x 1-7/8-12
Tube Outside Diameter
1-1/2 in

Product Questions & Answers (1)

Question by: Keith E on Oct 10, 2025, 11:26 AM
Will this fitting work with a 1 1/2 inch tube?
Answer by: Customer Support on Oct 12, 2025, 6:04 AM
This straight fitting is made for use with a 1-1/2 inch tube OD.
