06MFS-06MORB STRAIGHT LONG

Ask A Question

Description & Features

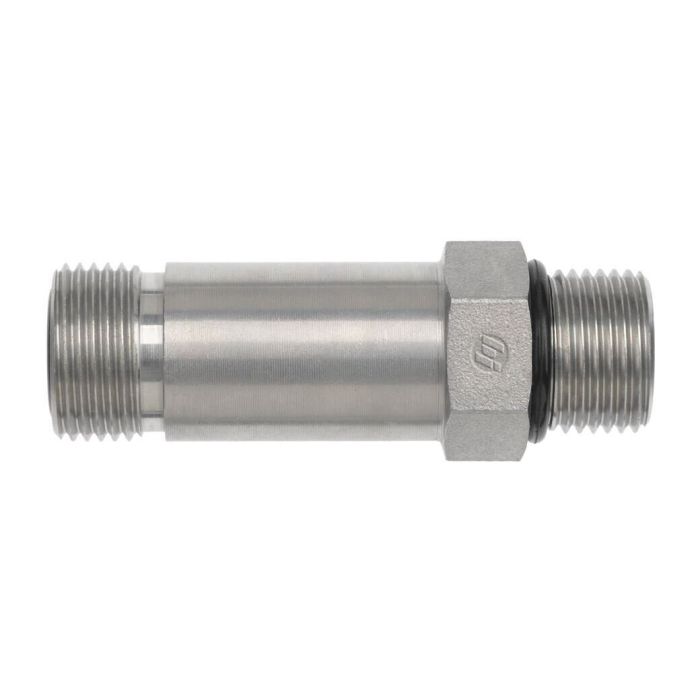

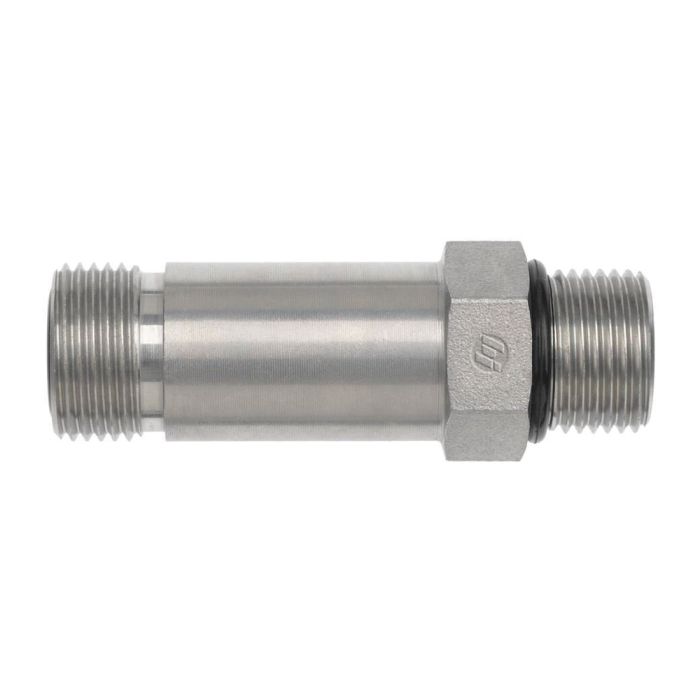

This straight long fitting, designated as 06MFS-06MORB STRAIGHT LONG, features a 3/8 inch tube OD and is part of the FS6400-L-O series from Brennan Industries.

The A drill measures 0.264 with an 11/16-16 thread, while the B drill also measures 0.264 with a 9/16-18 thread. The H Hex dimension is 0.750, and the L Length is 2.272.

SKU: FS6400-L-06-06-O

Supplier Part Number (MPN): FS6400-L-06-06-O

Alternate Part Numbers: AFF1854T0606S, FF6400-L-06-06

Specifications

Brand
BRENNAN
a Drill Dimensions
0.264 in
b Drill Dimensions
0.264 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1453, SAE J1926
Dimensions
2.272 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
3/4 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Operating Temperature
-40 to 250 deg F
Series
FS6400-L-O Series
Thread Size
11/16-16, 9/16-18
Tube OD
3/8 in
Tube Outside Diameter
0.38 in

Product Questions & Answers (1)

Question by: Frank M on May 6, 2025, 11:22 AM
So this is a straight fitting, right? Does it work for a 3/8 inch tube?
Answer by: Customer Support on May 7, 2025, 2:57 PM
That's right, this is a straight long fitting made for a 3/8 inch tube OD.
