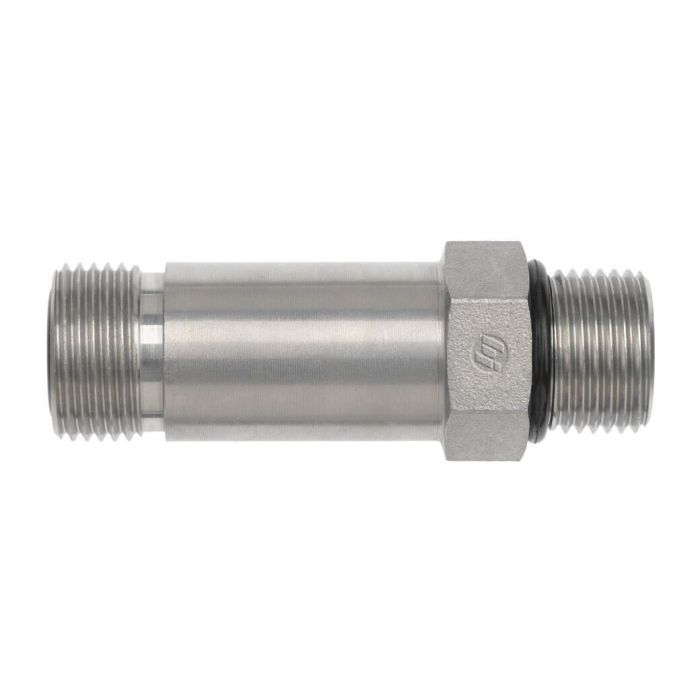

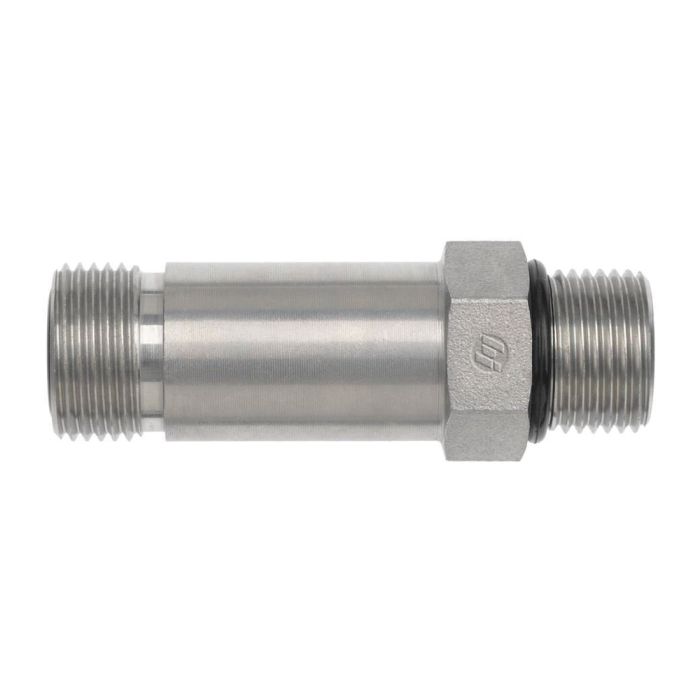

08MFS-08MORB STRAIGHT LONG

Description & Features

A straight long male fitting designed for use in hydraulic tube and port connections, the 08MFS-08MORB Straight Long connects a 1/2 in. OD tube end to an O-ring boss (ORB) port. The fitting uses a 13/16-16 thread on the flare side and a 3/4-16 thread on the ORB side, with a hex size of 0.875 in. and an overall length of 2.671 in. The extended length accommodates installations where standard-length fittings cannot reach the port or where additional clearance is needed between components.

Manufactured by Brennan Industries under the FS6400-L-O series, this fitting is suited for hydraulic systems requiring a reliable, leak-resistant ORB port connection. The O-ring face seal and male flare configuration provide a secure, vibration-resistant joint in demanding industrial applications.

SKU: FS6400-L-08-08-O

Supplier Part Number (MPN): FS6400-L-08-08-O

Alternate Part Numbers: AFF1854T0808S, FF6400-L-08-08

Specifications

Brand
BRENNAN
a Drill Dimensions
0.378 in
b Drill Dimensions
0.378 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1453, SAE J1926
Dimensions
2.671 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
7/8 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Operating Temperature
-40 to 250 deg F
Series
FS6400-L-O Series
Thread Size
13/16-16 x 3/4-16
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
06MFS-06MORB STRAIGHT LONG

FS6400-L-06-06-O

3/8 in

3/8 in

11/16-16, 9/16-18

MALE ORS 3/4IN X MALE ORB 3/4IN L:75MM

FS6400-L-12-12-O

3/4 in

3/4 in

1-3/16-12 x 1-1/16-12

24MFS-24MORB STRAIGHT LONG

FS6400-L-24-24-O

1-1/2 in

1-1/2 in

2-12 x 1-7/8-12

Product Questions & Answers (1)

Question by: Glen B on Jun 8, 2025, 12:11 PM
Hey, just wanna make sure this here fitting will work with my setup. I need to connect a half-inch OD tube to an O-ring boss. Will this do the trick?
Answer by: Customer Support on Jun 10, 2025, 6:56 AM
This straight long fitting is indeed designed to connect a 1/2 inch OD tube end to an O-ring boss port, so it should work for your setup.
