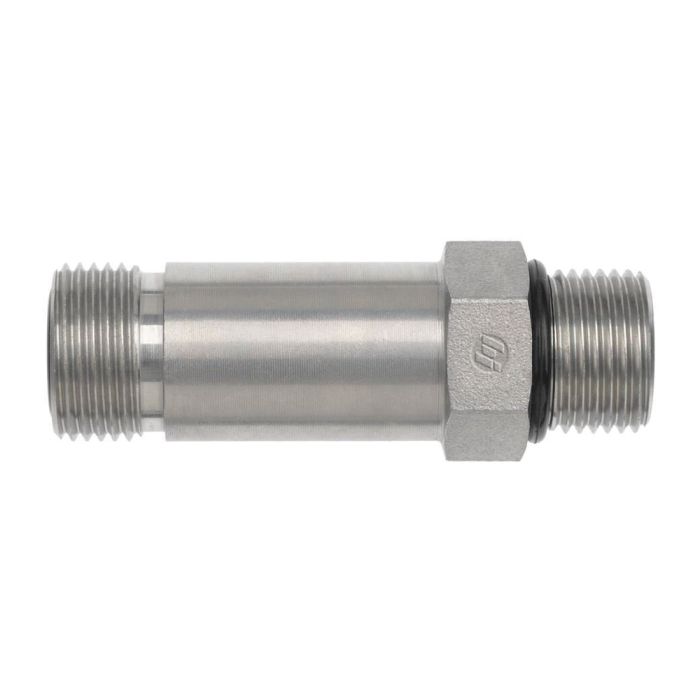

MALE ORS 3/4IN X MALE ORB 3/4IN L:75MM

Description & Features

Designed for robust industrial applications, this Male ORS to Male ORB fitting seamlessly connects hydraulic components with precision. With a 3/4-inch outer diameter and a length of 75mm, this fitting ensures reliable performance. The Brennan Industries product features a 1-3/16-12 thread on the ORS end and a 1-1/16-12 thread on the ORB end, providing secure connections and compatibility with various systems.

The hex size of 1.250 ensures easy installation and maintenance, while the durable construction supports long-term use in demanding environments. This fitting is part of the Brennan FS6400-L-O series, known for its high-quality standards and reliability.

SKU: FS6400-L-12-12-O

Supplier Part Number (MPN): FS6400-L-12-12-O

Alternate Part Numbers: AFF1854T1212S, FF6400-L-12-12

Specifications

Brand
BRENNAN
a Drill Dimensions
0.609 in
b Drill Dimensions
0.609 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1453, SAE J1926
Dimensions
3.758 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-1/4
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6400-L-O Series
Thread Size
1-3/16-12 x 1-1/16-12
Tube Outside Diameter
3/4 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
06MFS-06MORB STRAIGHT LONG

FS6400-L-06-06-O

3/8 in

3/8 in

11/16-16, 9/16-18

08MFS-08MORB STRAIGHT LONG

FS6400-L-08-08-O

1/2 in

1/2 in

13/16-16 x 3/4-16

24MFS-24MORB STRAIGHT LONG

FS6400-L-24-24-O

1-1/2 in

1-1/2 in

2-12 x 1-7/8-12

Product Questions & Answers (1)

Question by: Freddie S on Jul 26, 2025, 7:28 PM
What's the ORS and ORB thread size on this thing?
Answer by: Customer Support on Jul 28, 2025, 8:58 AM
The ORS thread is 1-3/16-12, and the ORB thread is 1-1/16-12.
