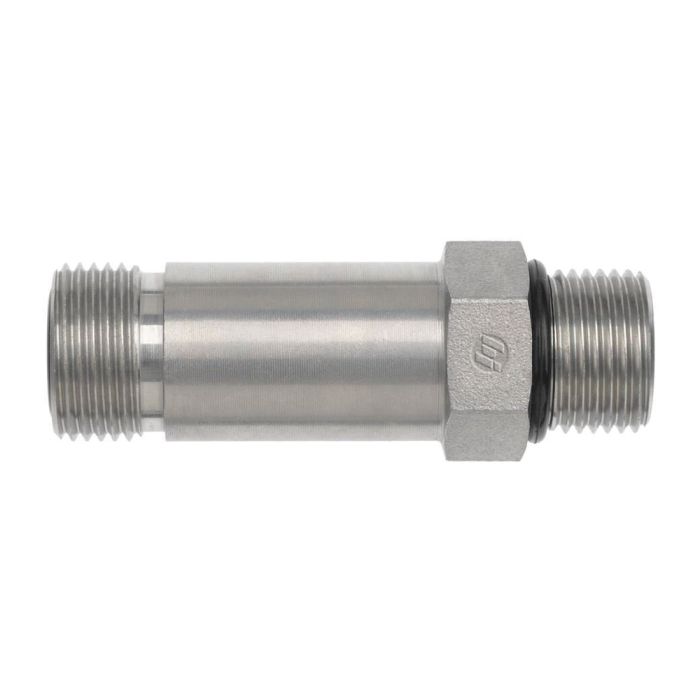

24MFS-24MORB STRAIGHT LONG

Description & Features

This straight long fitting, part number FS6400-L-24-24-O, features a 2-12 Brennan A thread and a 1-7/8-12 Brennan B thread.

The 24MFS-24MORB STRAIGHT LONG has a length of 5.258 inches and a hex size of 2.125 inches. The A and B drill size is 1.260 inches and the tube OD is 1-1/2 inches.

SKU: FS6400-L-24-24-O

Supplier Part Number (MPN): FS6400-L-24-24-O

Specifications

Brand
BRENNAN
a Drill Dimensions
1.26 in
b Drill Dimensions
1.26 in
Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1453, SAE J1926
Dimensions
5.258 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
2-1/8 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
5000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6400-L-O Series
Thread Size
2-12 x 1-7/8-12
Tube Outside Diameter
1-1/2 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
06MFS-06MORB STRAIGHT LONG

FS6400-L-06-06-O

3/8 in

3/8 in

11/16-16, 9/16-18

08MFS-08MORB STRAIGHT LONG

FS6400-L-08-08-O

1/2 in

1/2 in

13/16-16 x 3/4-16

MALE ORS 3/4IN X MALE ORB 3/4IN L:75MM

FS6400-L-12-12-O

3/4 in

3/4 in

1-3/16-12 x 1-1/16-12

Product Questions & Answers (1)

Question by: Ray R on Oct 23, 2025, 12:52 PM
What's the overall length on this straight fitting? Need to make sure it fits in the space I got.
Answer by: Customer Support on Oct 24, 2025, 6:03 PM
It has an overall length of 5.258 inches, so you can check that against your space.
