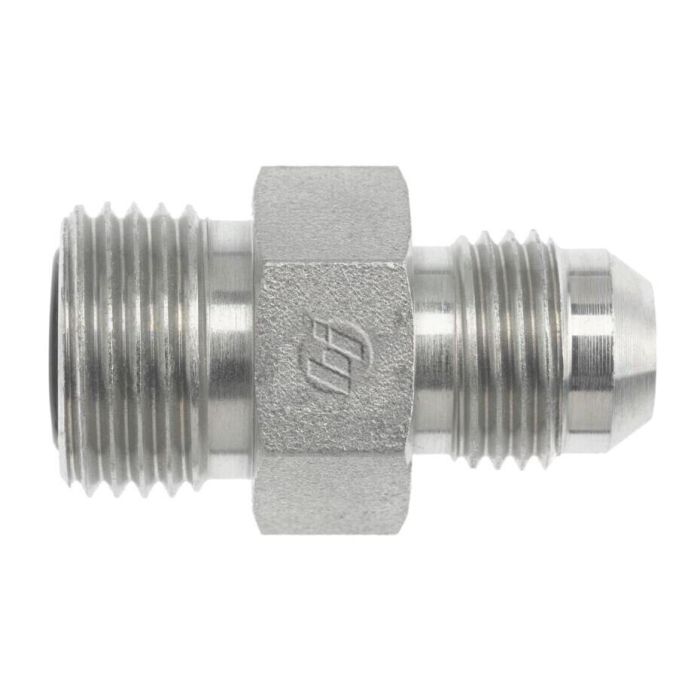

04MFS-04MJ STRAIGHT

Description & Features

The 04MFS-04MJ Straight adapter from Brennan Industries Inc is crafted for professionals needing dependable performance. This straight adapter is specifically designed for industrial categories and applications. Its A Thread measures 9/16-18 while the B Thread comes in at 7/16-20.

Engineered to meet stringent industry standards it features a precise A and B Drill of 0.172 inches. The hex dimension is 0.625 inches facilitating easy installation and secure connections. At a length of 1.250 inches it provides ample connection space without compromising structural integrity.

With a tube outer diameter of 1/4 inch this adapter ensures compatibility with various systems offering a reliable solution for numerous industrial setups. Part of the FS6403 Series it emphasizes durability and efficiency for demanding environments.

Supplier Part Number: FS6403-04-04

Specifications

a Drill Dimensions 0.172 in	b Drill Dimensions 0.172 in	Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type Male JIC, Male ORFS	Connection Type 1 Male SAE ORFS	Connection Type 2 Male SAE JIC	Dimension Standards SAE J1453, SAE J514	Dimensions 1-1/4 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 5/8 in	Material Steel	Material Construction AISI 12L14/C1045 Steel	Operating Temperature -40 to 250 deg F	Series FS6403 Series	Thread Size 9/16-18, 7/16-20	Tube OD 1/4 in	Tube Outside Diameter 1/4 in

Product Questions & Answers (1)

Question by: Melvin M on Jul 5, 2025, 3:02 PM

So, this thing's got different threads on each end? Just wanna make sure I'm readin' it right.

Answer by: Customer Support on Jul 6, 2025, 7:08 PM

That's right. The A thread is 9/16-18, and the B thread is 7/16-20.
