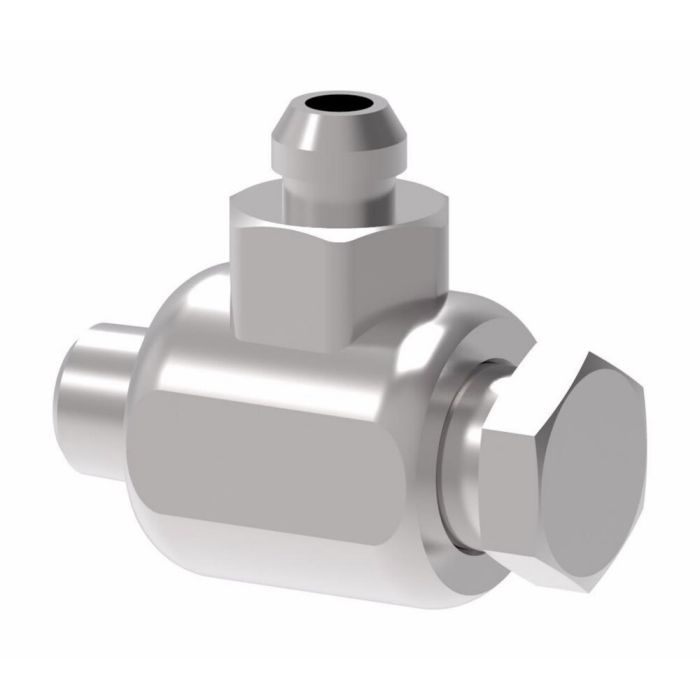

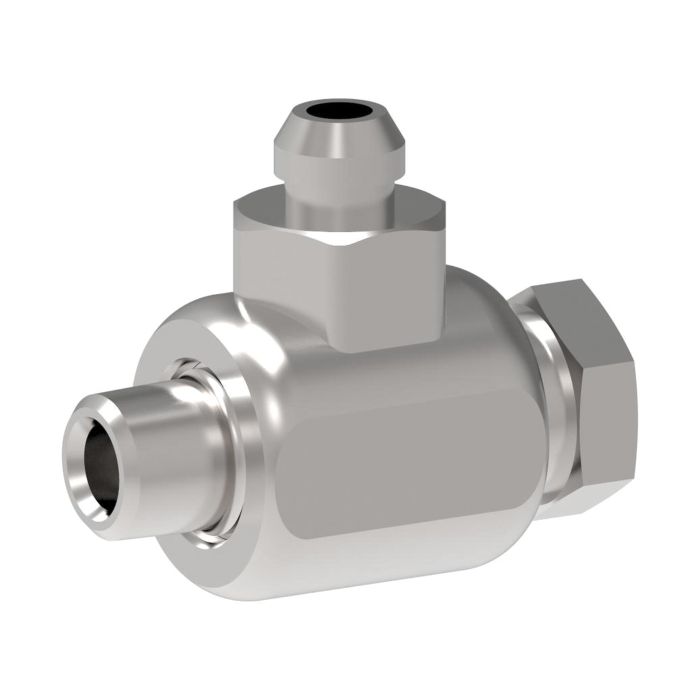

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1/2-14 NPSM Female Pipe Swivel Casing Thread To 1/2-14 Male Pipe Sleeve Thread

Ask A Question

Description & Features

The FS65 Series Standard Duty Balanced Pressure Swivel Joint 1/2-14 NPSM Female Pipe Swivel Casing Thread To 1/2-14 Male Pipe Sleeve Thread by Danfoss offers a balanced-pressure design and 360deg; rotation capabilities. This swivel joint features contamination seals and a standard o-ring design with available repair kits ensuring reliable performance in demanding environments. With a pressure rating of 3500 PSI for sizes 1/2 and 5/8 it is suitable for various industrial applications.

The FS65 Series is designed with low-drop dimensions minimizing pressure loss during fluid transfer processes. A robust seal made from Buna-N (Standard) or optional EPR or Vitonreg; ensures secure and effective sealing under extreme conditions withstanding temperatures as low as -40deg;C.

The female end size is 0.5 inches with a 1/2-14 NPSM thread while the male end size is 0.5 inches with a 1/2-14 thread making it versatile for different setups. The product is identified by the catalog number C1FH45 and is classified under ECCN EAR99.

MPN: FS65-01014-116|FS-01021-08

Supplier Part Number: FS65000-0808-01

Specifications

A
2.88
B
1.54
C
1.62
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13556
End Size 1
0.50
End Size 2
0.50
End Type 1
NPSM
End Type 2
NPTF
Hex Size 2
1
Minimum Working Temperature
-40
Nominal Size
0.50
Seal Part if Included
FS65-01014-116|FS-01021-08
Supplier Part Number
FS65000-0808-01
Swivel Size
0.50
Thread 1
1/2-14 NPSM
Thread 2
1/2-14
Thread Sealant
No
Torque Rating
15 IN-LBS
Torque Rating
15 IN-LBS
Alternate Part Numbers
Alternate Part Number C1FH45, Alternate Part Number MI-02372684, Alternate Part Number MINO-00015J28006, Alternate Part Number MINO-00925X66314
Product Weight
1.20 lbs

Related Documents

Similar Products

Model Number Nominal Size Thread 1 Thread 2 A B C Price Action
FS65 Series Standard Duty Balanced Pressure Swivel Joint, 3/8-18 NPSM Female Pipe Swivel Casing Thread To 3/8-18 Male Pipe Sleeve Thread

FS65000-0606-01 FS65 Series Swivel Joint

0.375

3/8-18 NPSM

3/8-18

2.53

1.48

1.45

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1/2-14 NPSM Female Pipe Swivel Casing Thread To 1/2-14 Male Pipe Sleeve Thread

FS65000-0808-01 FS65 Series Swivel Joint

0.5

1/2-14 NPSM

1/2-14

2.88

1.54

1.62

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 3/4-14 NPSM Female Pipe Swivel Casing Thread To 3/4-14 Male Pipe Sleeve Thread

FS65000-1212-01 FS65 Series Swivel Joint

0.75

3/4-14 NPSM

3/4-14

3.21

1.89

2.14

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1-11-1/2 NPSM Female Pipe Swivel Casing Thread To 1-11-1/2 Male Pipe Sleeve Thread

FS65000-1616-01 FS65 Series Swivel Joint

1

1-11-1/2 NPSM

1-11-1/2

3.91

2.27

2.4

Product Questions & Answers (3)

Question by: Darryl C on Jun 22, 2025, 9:57 AM
got a hose reel that needs to spin without twisting the line. is this FS65 swivel the kind that’ll rotate all the way around?
Answer by: Customer Support on Jun 24, 2025, 9:21 AM
For setups where the line needs to turn freely, the FS65 is built for 360° rotation and uses a balanced pressure design to keep the swivel action consistent.
Question by: Patty S on Nov 29, 2025, 11:31 AM
seals on this thing, what are my options if buna-n ain't gonna cut it for what I'm running?
Answer by: Customer Support on Nov 30, 2025, 5:38 PM
Two other seal materials are available for this swivel joint. EPR is the suffix -04 option, and Viton is the suffix -06 option. Buna-N comes standard on the -01 suffix version. All three are rated down to -40 degrees C on the low end, so the cold side isn't where they differ. The choice really comes down to fluid compatibility with whatever media you're pushing through the line. A fluid compatibility reference document is available through Eaton's published resources if you need to cross-check a specific fluid against seal material.
Question by: Hubert G on Sep 11, 2025, 7:19 AM
Reckon this swivel joint will hold up alright for a hydraulic setup running around 3500 PSI? Don't want no leaks.
Answer by: Customer Support on Sep 12, 2025, 9:14 AM
It's rated to handle 3500 PSI in the 1/2 and 5/8 sizes, so you should be good to go there, provided you're using the right size. Also, make sure you get the right seal material, depending on the fluid you are using. Buna-N is standard, but EPR or Viton are available if needed.
