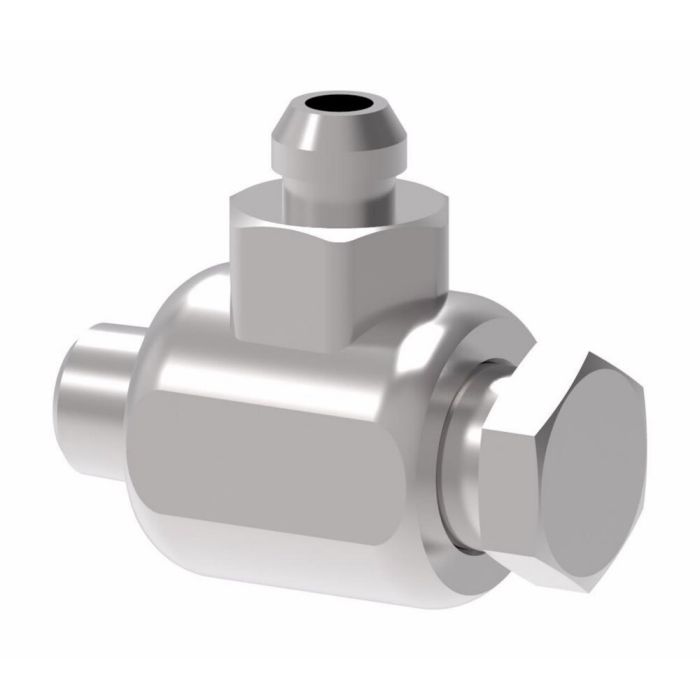

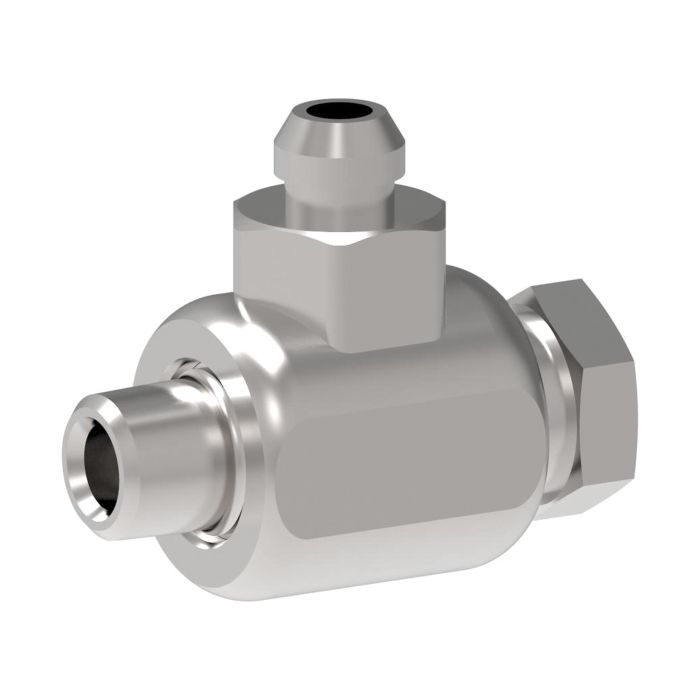

main product photo

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 3/4-14 NPSM Female Pipe Swivel Casing Thread To 3/4-14 Male Pipe Sleeve Thread

Ask A Question

Description & Features

The Danfoss / Eaton FS6500 Series Swivel Joints are designed for demanding industrial applications featuring a balanced-pressure design. These swivel joints accommodate 360deg; rotation making them versatile for varied use cases. With low-drop dimensions they offer a compact yet high-performance solution. Integrated contamination seals ensure protection in harsh environments. This product has a nominal size of 0.75 inches and includes standard o-ring designs and repair kits. The 3/4-14 NPSM female pipe swivel casing thread connects seamlessly with the 3/4-14 NPTF male pipe sleeve thread. Suitable for a pressure rating of 3500 PSI for size 3/4 this swivel joint operates efficiently under a minimum working temperature of -40deg;F. The torque rating stands at 17 IN-LBS. Seals including the suffix-01 Buna-N (Standard) suffix-04 EPR and suffix-06 Vitonreg; enhance its durability and reliability. Danfoss Power Solutions (II LLC Aeroquip) ensures robust construction and reliable performance in the toughest conditions.

Supplier Part Number: FS65000-1212-01

Specifications

A
3.21
B
1.89
C
2.14
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13556
End Size 1
0.75
End Size 2
0.75
End Type 1
NPSM
End Type 2
NPTF
Hex Size 2
1.25
Minimum Working Temperature
-40
Nominal Size
0.75
Seal Part if Included
FS65-01014|FS65-01021-12
Supplier Part Number
FS65000-1212-01
Swivel Size
0.75
Thread 1
3/4-14 NPSM
Thread 2
3/4-14
Thread Sealant
No
Torque Rating
17 IN-LBS
Torque Rating
17 IN-LBS
Alternate Part Numbers
Alternate Part Number C1FH46, Alternate Part Number MI-02372686, Alternate Part Number MINO-00015J28008, Alternate Part Number MINO-00925X13585
Product Weight
1.80 lbs

Related Documents

Similar Products

Model Number Nominal Size Thread 1 Thread 2 A B C Price Action
FS65 Series Standard Duty Balanced Pressure Swivel Joint, 3/8-18 NPSM Female Pipe Swivel Casing Thread To 3/8-18 Male Pipe Sleeve Thread

FS65000-0606-01 FS65 Series Swivel Joint

0.375

3/8-18 NPSM

3/8-18

2.53

1.48

1.45

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1/2-14 NPSM Female Pipe Swivel Casing Thread To 1/2-14 Male Pipe Sleeve Thread

FS65000-0808-01 FS65 Series Swivel Joint

0.5

1/2-14 NPSM

1/2-14

2.88

1.54

1.62

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 3/4-14 NPSM Female Pipe Swivel Casing Thread To 3/4-14 Male Pipe Sleeve Thread

FS65000-1212-01 FS65 Series Swivel Joint

0.75

3/4-14 NPSM

3/4-14

3.21

1.89

2.14

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1-11-1/2 NPSM Female Pipe Swivel Casing Thread To 1-11-1/2 Male Pipe Sleeve Thread

FS65000-1616-01 FS65 Series Swivel Joint

1

1-11-1/2 NPSM

1-11-1/2

3.91

2.27

2.4

Product Questions & Answers (3)

Question by: Kent M on Oct 22, 2025, 9:30 PM
torque rating on this one is 17 in-lbs, is that gonna be enough for a 3/4 inch line running at or near that 3500 PSI max?
Answer by: Customer Support on Oct 24, 2025, 11:42 AM
At 3500 PSI, the 17 in-lb torque rating is what you get with the 3/4 size in this series. That rating reflects the rotational resistance of the swivel itself, not line pressure capacity. The joint is pressure-balanced, which actually helps keep that torque number low even under load. So yes, 17 in-lbs is normal and expected at that size and pressure range.
Question by: Lee H on Nov 14, 2025, 10:24 AM
got a hose that likes to twist up when the boom swings. will this swivel let it spin all the way around?
Answer by: Customer Support on Nov 16, 2025, 9:25 AM
For motion and hose management, it gives you full 360° rotation and uses a balanced pressure design, so it’s meant for demanding industrial setups where the line needs to turn without fighting you.
Question by: Frank G on Oct 31, 2025, 9:04 AM
Reckon this swivel joint would hold up okay on a piece of equipment that runs pretty much all day long?
Answer by: Customer Support on Nov 1, 2025, 10:02 AM
These swivel joints are designed for demanding industrial applications and are built to accommodate continuous 360-degree rotation, so they should be suitable for equipment that runs for extended periods.
