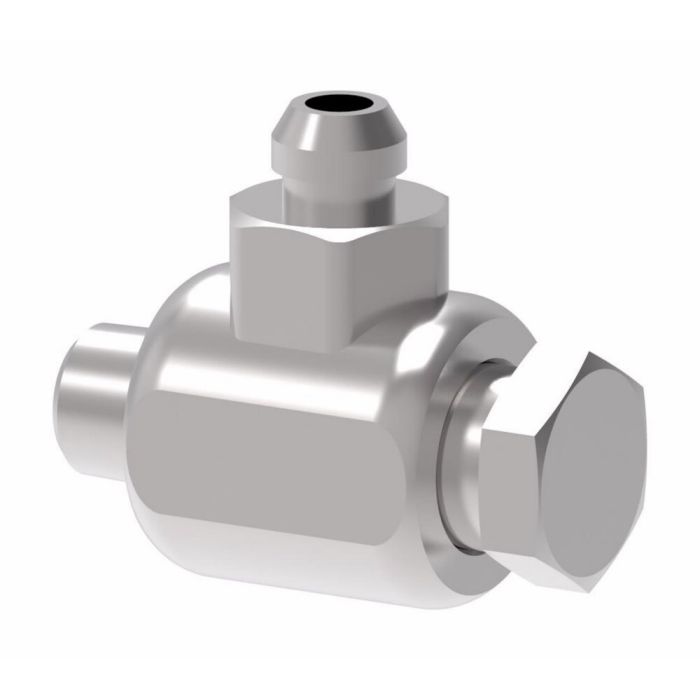

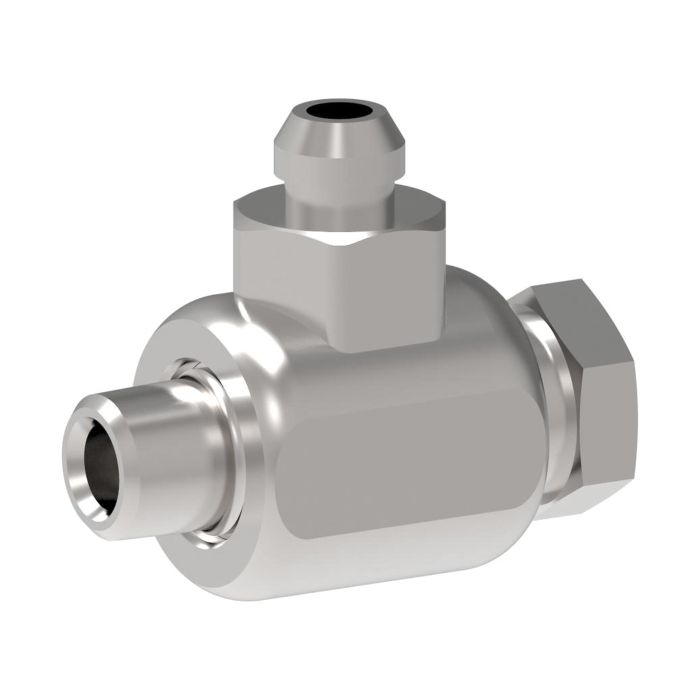

main product photo

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1-11-1/2 NPSM Female Pipe Swivel Casing Thread To 1-11-1/2 Male Pipe Sleeve Thread

Ask A Question

Description & Features

The Eaton Aeroquip FS65 Series standard duty balanced pressure swivel joint features a 1-11/2 NPSM female pipe swivel casing thread and a 1-11/2 male pipe sleeve thread. It offers 360° rotation and utilizes a standard O-ring design and repair kits.

Designed with a balanced-pressure, low-drop configuration, this FS65 Series Standard Duty Balanced Pressure Swivel Joint also includes contamination seals. Buna-N seals are standard with -04 EPR and -06 Viton® available. It is rated to 3000 PSI.

SKU: FS65000-1616-01

Supplier Part Number (MPN): FS65000-1616-01

Alternate Part Numbers: C1FK62

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.91 in
b Dimensions
2.27 in
c Dimensions
2.4 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
FNPSM Swivel
Connection Type 2
Male NPTF
Dimension Standards
SAE J1176
Dimensions
3.91 in L x 3.48 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Hex Size
1-5/8 x 1-11/16 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
3000 psi
Operating Temperature
-40 to 250 deg F
Seal
Buna-N
Seal Material
Buna-N
Segment Code
C
Series
FS6500 Series
Thread Size
1-11-1/2

Similar Products

Model Number Nominal Size Thread Size Thread 2 a Dimensions b Dimensions c Dimensions Price Action
FS65 Series Standard Duty Balanced Pressure Swivel Joint, 3/8-18 NPSM Female Pipe Swivel Casing Thread To 3/8-18 Male Pipe Sleeve Thread

FS65000-0606-01 FS65 Series Swivel Joint

0.375

3/8-18

3/8-18

2.53 in

1.48 in

1.45 in

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1/2-14 NPSM Female Pipe Swivel Casing Thread To 1/2-14 Male Pipe Sleeve Thread

FS65000-0808-01 FS65 Series Swivel Joint

0.5

1/2-14

1/2-14

2.88 in

1.54 in

1.62 in

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 3/4-14 NPSM Female Pipe Swivel Casing Thread To 3/4-14 Male Pipe Sleeve Thread

FS65000-1212-01 FS65 Series Swivel Joint

0.75

3/4-14

3/4-14

3.21 in

1.89 in

2.14 in

Product Questions & Answers (2)

Question by: Curt T on Nov 26, 2025, 7:21 PM
what seal options come with this swivel joint, and are any of them better suited for petroleum-based fluids?
Answer by: Customer Support on Nov 28, 2025, 9:01 AM
Buna-N is the standard seal and handles petroleum-based hydraulic fluids just fine for most shop and field applications. If you're running something more aggressive, EPR is available with the -04 suffix and Viton with the -06 suffix. For straight mineral oil or standard hydraulic fluid, the Buna-N that comes on the -01 version is going to hold up without any issue.
Question by: Kurt W on Jun 14, 2025, 10:27 AM
got a tight spot on a hose reel. does this swivel actually spin all the way around or is it limited?
Answer by: Customer Support on Jun 15, 2025, 8:02 PM
For hose reels and other moving hydraulic connections, it gives you full 360° rotation, so the joint can turn continuously instead of binding up.
