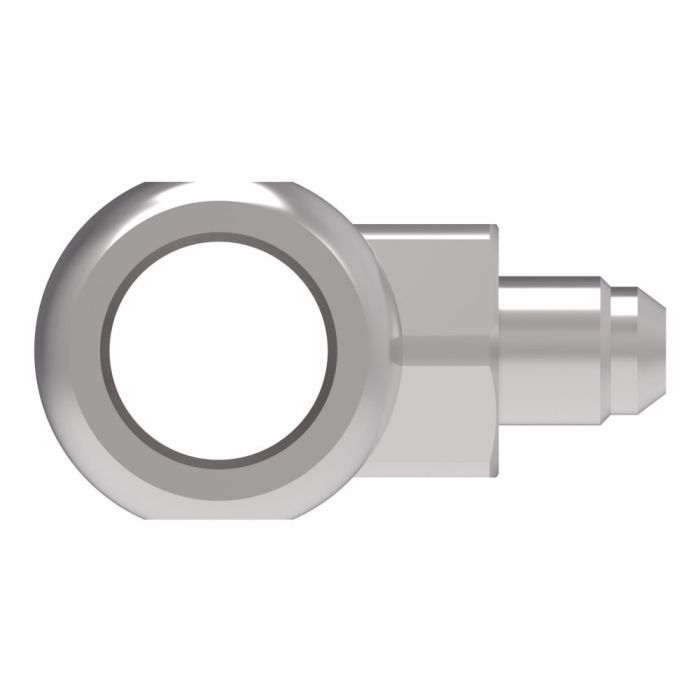

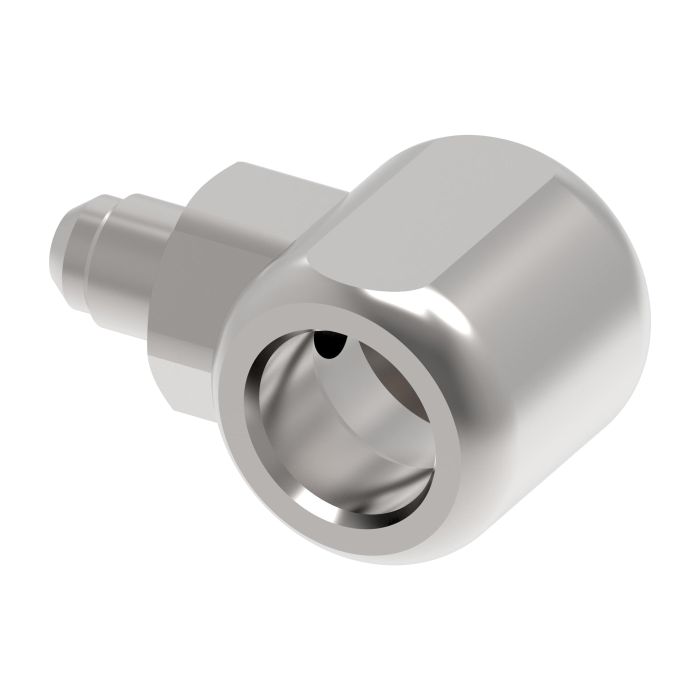

main product photo

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1/2-14 NPSM Female Pipe Swivel Casing Thread To 1/2-14 Female Pipe Sleeve Thread

Ask A Question

Description & Features

The Danfoss / Eaton FS6500 Series Swivel Joints are engineered for demanding applications requiring efficient flexible swivel joints. Featuring a balanced-pressure design and 360deg; rotation these joints offer low-drop dimensions and contamination seals ensuring optimal functioning in harsh industrial environments.

Constructed with a nominal size of 0.5 inches the swivel joints are equipped with 1/2-14 NPSM female pipe swivel casing thread and 1/2-14 female pipe sleeve thread. Designed to perform effectively at varying pressures the FS65 Series accommodates a pressure rating of 3500 PSI for the 1/2 and 5/8 sizes.

Seals are available in Buna-N (standard) EPR and Vitonreg; options providing versatility in different industrial settings. The standard o-ring design and repair kits make maintenance straightforward and convenient.

Operating efficiently down to a minimum temperature of -40deg;C these swivel joints are ideal for a wide range of industrial applications. The robust construction ensures longevity and reliability minimizing downtime.

Supplier Part Number: FS65005-0808-01

Specifications

A
3.14
B
1.97
C
1.62
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
0.50
End Size 2
0.50
End Type 1
NPTF
End Type 2
NPTF
Hex Size 2
1.06
Minimum Working Temperature
-40
Nominal Size
0.50
Supplier Part Number
FS65005-0808-01
Swivel Size
0.50
Thread 1
1/2-14 NPSM
Thread 2
1/2-14
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1FH49, Alternate Part Number MI-02372717, Alternate Part Number MINO-00015J28039
Product Weight
1.40 lbs

Related Documents

Similar Products

Model Number Nominal Size Thread 1 Thread 2 A B C Price Action
FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1/2-14 NPSM Female Pipe Swivel Casing Thread To 1/2-14 Female Pipe Sleeve Thread

FS65005-0808-01 FS65 Series Swivel Joint

0.5

1/2-14 NPSM

1/2-14

3.14

1.97

1.62

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 3/4-14 NPSM Female Pipe Swivel Casing Thread To 3/4-14 Female Pipe Sleeve Thread

FS65005-1212-01 FS65 Series Swivel Joint

0.75

3/4-14 NPSM

3/4-14

3.21

2.08

2.14

Product Questions & Answers (1)

Question by: Hubert B on May 27, 2025, 10:11 AM
got a 1/2 inch line, is this swivel the one with female threads on both ends or am i readin it wrong
Answer by: Customer Support on May 29, 2025, 6:10 AM
For hook-up, it is female on both ends with 1/2-14 NPSM female pipe swivel casing threads on one side and 1/2-14 female pipe sleeve threads on the other. The nominal swivel size is 1/2 inch.
