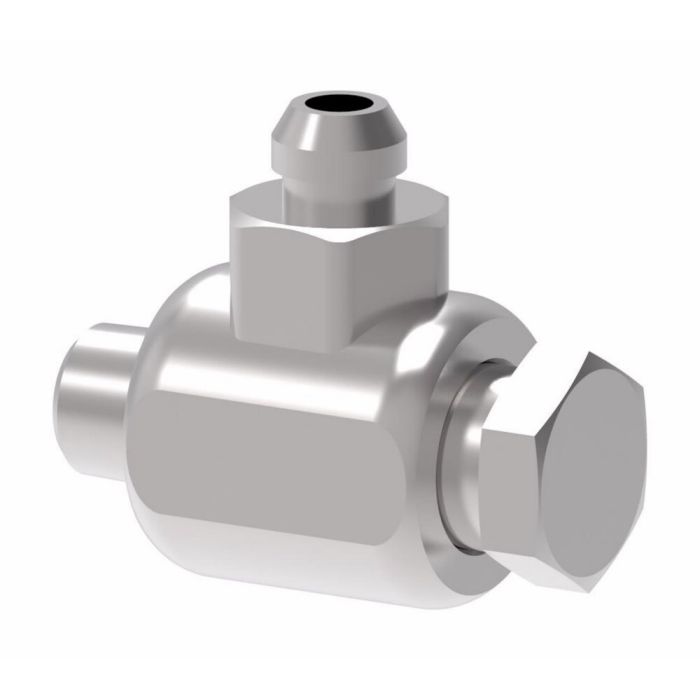

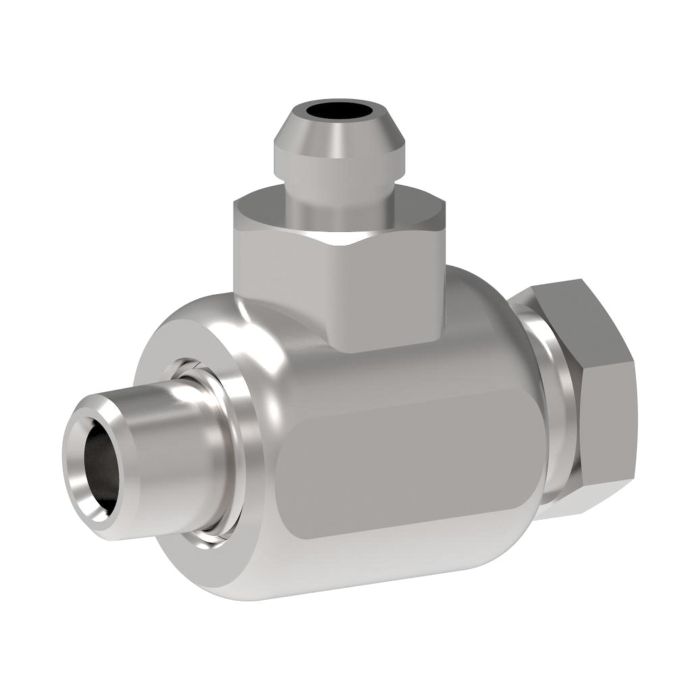

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1/2-14 Female Pipe Casing Thread To 1/2-14 Male Pipe Sleeve Thread

Ask A Question

Description & Features

The FS65 Series Standard Duty Balanced Pressure Swivel Joint offers a balanced-pressure design suitable for demanding industrial applications. This joint which includes contamination seals and allows 360deg; rotation ensures a reliable connection. Equipped with a standard o-ring design and available repair kits it provides long-lasting performance.

Designed by Danfoss Power Solutions (II LLC Aeroquip) this swivel joint features a 1/2-14 female pipe casing thread on one end and a 1/2-14 male pipe sleeve thread on the other.

It operates efficiently at a pressure rating of 3500 PSI for the 1/2 and 5/8 sizes making it ideal for various industrial environments. The use of Buna-N seals (suffix -01) ensures durability and reliability under harsh conditions.

With low-drop dimensions this swivel joint helps maintain system performance while minimizing potential contamination risks.

Supplier Part Number: FS65007-0808-01

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.88 in
b Dimensions
1.54 in
c Dimensions
1.88 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
FNPT, MNPT
Connection Type 1
Female NPTF
Connection Type 2
Male NPTF
Dimension Standards
SAE J1176
Dimensions
2.88 in L x 2.65 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Fluid
Glycol, Hydraulic Oils, Water
Hex Size
1.142 in, 1 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
3500 psi
Operating Temperature
-40 to 250 deg F
Seal
Buna-N
Seal Material
Buna-N
Segment Code
A
Series
FS6500 Series
Thread Sealant
Without Thread Sealant
Thread Size
1/2-14

Similar Products

Model Number Nominal Size Thread Size Thread 2 a Dimensions b Dimensions c Dimensions Price Action
FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1-11-1/2 Female Pipe Casing Thread To 1-11-1/2 Male Pipe Sleeve Thread

FS65007-1616-01 FS65 Series Swivel Joint

1

1-11-1/2

1-11-1/2

3.91 in

2.27 in

2.62 in

Product Questions & Answers (2)

Question by: Hank R on Aug 7, 2025, 11:47 AM
what seal material comes standard on this swivel joint, and are there other options if I'm running something other than regular hydraulic oil?
Answer by: Customer Support on Aug 9, 2025, 7:14 AM
Buna-N is the standard seal material, which covers most petroleum-based hydraulic fluids just fine. If your system runs something that isn't compatible with Buna-N, there are two other seal options available for this series. The EPR version uses the suffix -04, and the Viton version uses suffix -06. Just make sure to specify the right suffix when ordering so you get the correct seal for your fluid type.
Question by: Harvey B on Jun 3, 2025, 7:29 PM
What kinda stuff can this swivel joint handle pressure-wise? Just wanna make sure it'll hold up.
Answer by: Customer Support on Jun 5, 2025, 6:39 PM
It's rated to handle 3500 PSI, which should be suitable for a bunch of industrial applications where you're not pushing things too hard.
