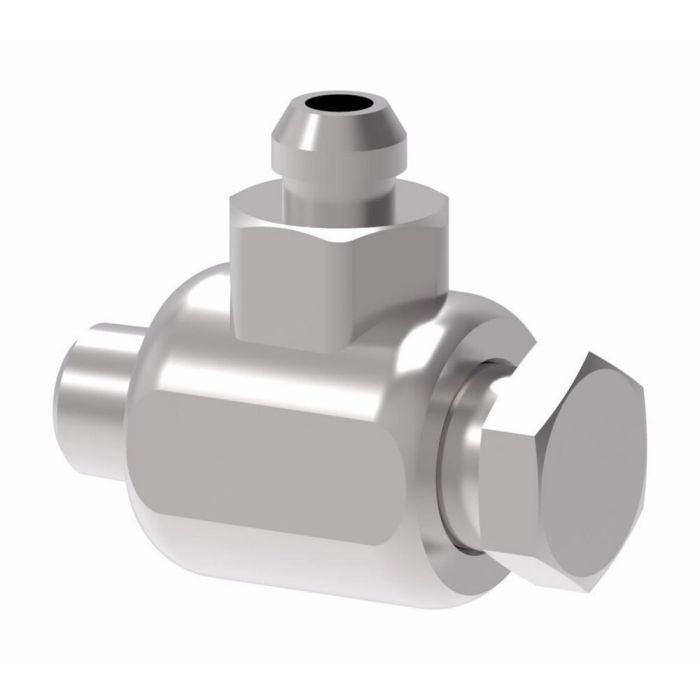

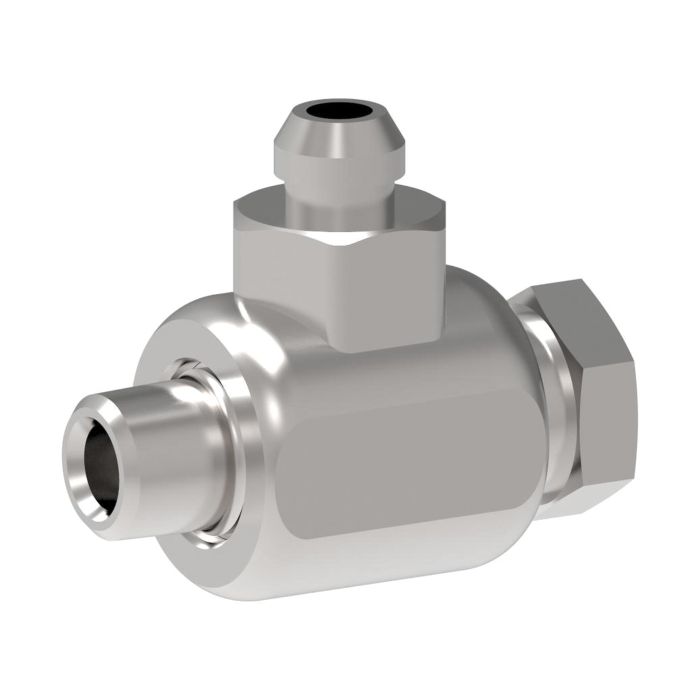

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1-11-1/2 Female Pipe Casing Thread To 1-11-1/2 Male Pipe Sleeve Thread

Ask A Question

Description & Features

The FS65 Series Standard Duty Balanced Pressure Swivel Joint is expertly designed for industrial hydraulic applications, providing seamless 360° rotation. Its balanced-pressure design ensures consistent performance, while contamination seals protect against environmental elements. The swivel joint features 1-11-1/2 female pipe casing thread on one end and 1-11-1/2 male pipe sleeve thread on the other, making it versatile for various setups. With a robust pressure rating of 3000 PSI for the 1-inch size, it accommodates demanding operational environments. The standard Buna-N seal ensures reliable fluid compatibility, with options available for EPR and Viton® seals.

Manufactured by Eaton Aeroquip, this swivel joint is engineered to maintain integrity at temperatures as low as -40°F. Its compact design, with dimensions of 3.91 inches for dimension A, 2.27 inches for dimension B, and 2.62 inches for dimension C, ensures it fits seamlessly into existing systems. This product is an essential component for maintaining fluid dynamics in industrial settings.

SKU: FS65007-1616-01

Supplier Part Number (MPN): FS65007-1616-01

Alternate Part Numbers: C1FK64

Specifications

A
3.91
B
2.27
C
2.62
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13556
End Size 1
1
End Size 2
1
End Type 1
NPTF
End Type 2
NPTF
Hex Size 2
1.63
Minimum Working Temperature
-40
Nominal Size
1
Supplier Part Number
FS65007-1616-01
Swivel Size
1
Thread 1
1-11-1/2
Thread 2
1-11-1/2
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1FK64, Alternate Part Number MINO-00925X13631
Product Weight
2.00 lbs

Related Documents

Similar Products

Model Number Nominal Size Thread 1 Thread 2 A B C Price Action
FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1/2-14 Female Pipe Casing Thread To 1/2-14 Male Pipe Sleeve Thread

FS65007-0808-01 FS65 Series Swivel Joint

0.5

1/2-14

1/2-14

2.88

1.54

1.88

Product Questions & Answers (3)

Question by: Janice T on Sep 23, 2025, 4:08 PM
what's the pressure rating on the 1-inch size of this swivel joint, and is 3000 PSI enough for standard hydraulic lines?
Answer by: Customer Support on Sep 25, 2025, 6:28 AM
For the 1-inch size, 3000 PSI is the rated working pressure. That covers a wide range of standard hydraulic circuit pressures without any issue. Worth noting, the smaller sizes in the FS65 series are rated higher, up to 5000 PSI for the 1/4 and 3/8 sizes and 3500 PSI for the 1/2 through 3/4 range, but for the 1-inch, 3000 PSI is the ceiling. If your system runs at or below that, you're in good shape.
Question by: Earl G on Dec 6, 2025, 10:16 AM
What kind of pressure can this handle? I'm working with some pretty high-pressure stuff here.
Answer by: Customer Support on Dec 8, 2025, 6:15 AM
This FS65 series swivel joint is rated to 3000 PSI for the 1-inch size, so ensure your system doesn't exceed that.
Question by: Cindy S on Aug 27, 2025, 2:06 PM
got a line that needs to spin without twisting the hose. will this FS65 joint do a full turn?
Answer by: Customer Support on Aug 29, 2025, 7:00 AM
Built for 360° rotation, the FS65 balanced-pressure swivel lets the connection rotate freely so the hose or hydraulic lines is less likely to wind up when things move.
