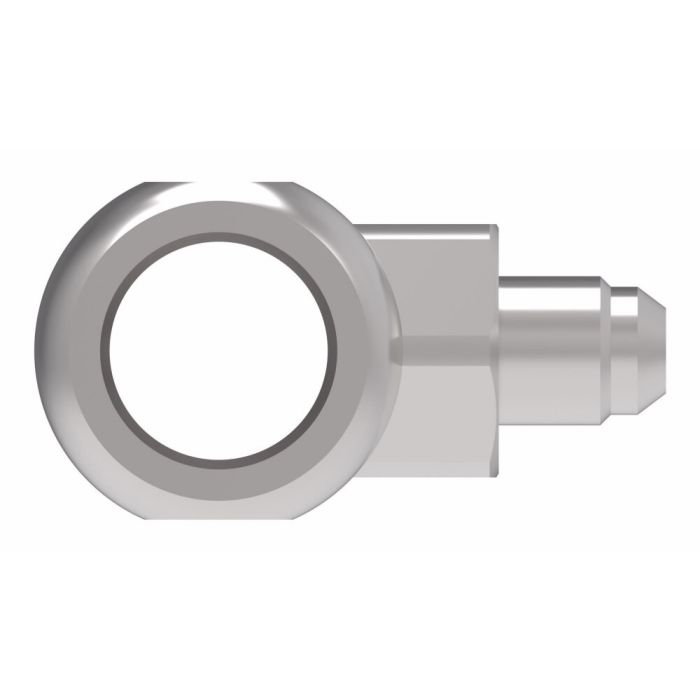

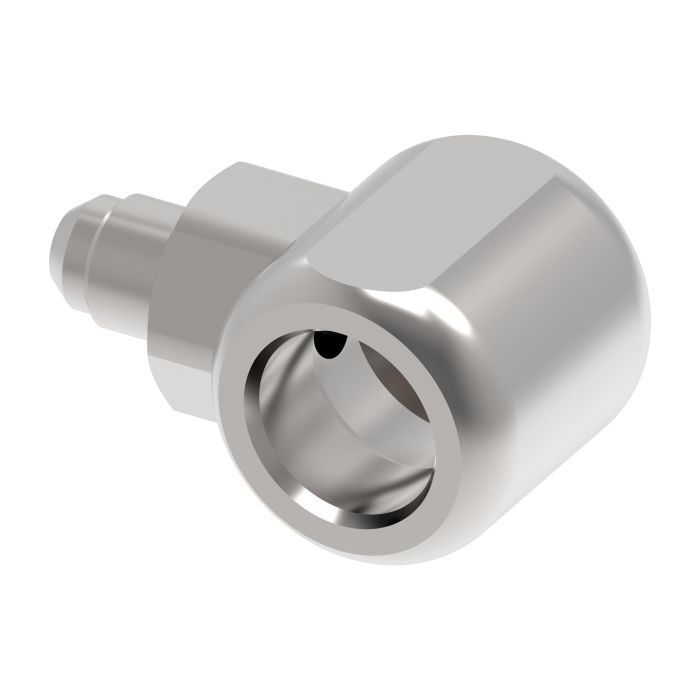

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 3/8-18 Female Pipe Casing Thread To 3/8-18 Female Pipe Sleeve Thread

Ask A Question

Description & Features

Designed for industrial hydraulic applications, the FS65 Series Standard Duty Balanced Pressure Swivel Joint offers robust performance with its balanced-pressure design. This swivel joint features 3/8-18 female pipe casing thread to 3/8-18 female pipe sleeve thread, ensuring reliable connectivity in fluid transfer systems. Engineered by Eaton Aeroquip, it supports a pressure rating of up to 5000 PSI for sizes 1/4 and 3/8, making it suitable for demanding environments. Its 360° rotation capability and contamination seals enhance operational efficiency and longevity. The standard o-ring design, along with available repair kits, ensures ease of maintenance and reduced downtime.

SKU: FS65008-0606-01

Supplier Part Number (MPN): FS65008-0606-01

Alternate Part Numbers: C1FH52, MI-02372730, MINO-00015J28052

Specifications

A
2.49
B
1.58
C
1.59
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
0.38
End Size 2
0.38
End Type 1
NPTF
End Type 2
NPTF
Hex Size 2
0.94
Minimum Working Temperature
-40
Nominal Size
0.38
Supplier Part Number
FS65008-0606-01
Swivel Size
0.38
Thread 1
3/8-18
Thread 2
3/8-18
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1FH52, Alternate Part Number MI-02372730, Alternate Part Number MINO-00015J28052, Alternate Part Number MINO-00925X13633
Product Weight
1.00 lbs

Related Documents

Similar Products

Model Number Nominal Size Thread 1 Thread 2 A B C Price Action
FS65 Series Standard Duty Balanced Pressure Swivel Joint, 3/8-18 Female Pipe Casing Thread To 3/8-18 Female Pipe Sleeve Thread

FS65008-0606-01 FS65 Series Swivel Joint

0.375

3/8-18

3/8-18

2.49

1.58

1.59

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1/2-14 Female Pipe Casing Thread To 1/2-14 Female Pipe Sleeve Thread

FS65008-0808-01 FS65 Series Swivel Joint

0.5

1/2-14

1/2-14

3.14

1.97

1.88

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1-11-1/2 Female Pipe Casing Thread To 1-11-1/2 Female Pipe Sleeve Thread

FS65008-1616-01 FS65 Series Swivel Joint

1

1-11-1/2

1-11-1/2

3.84

2.53

2.62

Product Questions & Answers (3)

Question by: Neal C on Sep 21, 2025, 6:22 PM
got a hose setup with 3/8-18 female pipe on both sides. is this the swivel that matches that, or am i mixin up the casing vs sleeve threads
Answer by: Customer Support on Sep 23, 2025, 5:04 PM
For FS65008-0606-01, both ends are 3/8-18 NPTF female. One side is the female pipe casing thread and the other is the female pipe sleeve thread, so it is built for a 3/8-18 female to 3/8-18 female connection.
Question by: Johnny F on Aug 21, 2025, 3:06 PM
Can this swivel joint handle hydraulic fluid, or do I need to use something special?
Answer by: Customer Support on Aug 23, 2025, 12:57 PM
This FS65 series swivel joint is designed for industrial hydraulic applications, so standard hydraulic fluid should work just fine. The product documents also include a fluid compatibility guide, so you can double-check specific fluids there.
Question by: Rod H on Sep 5, 2025, 6:57 AM
seal material on this thing, is it just standard buna-n or do you get a choice?
Answer by: Customer Support on Sep 6, 2025, 11:57 AM
Buna-N is the default, which is what the -01 suffix on this part number indicates. If your application calls for something different, there are two other seal options available across the FS65 series: EPR (suffix -04) and Viton (suffix -06). The part you're looking at here is spec'd with Buna-N out of the box, so if that works for your fluid and temperature range, you're good to go as-is.
