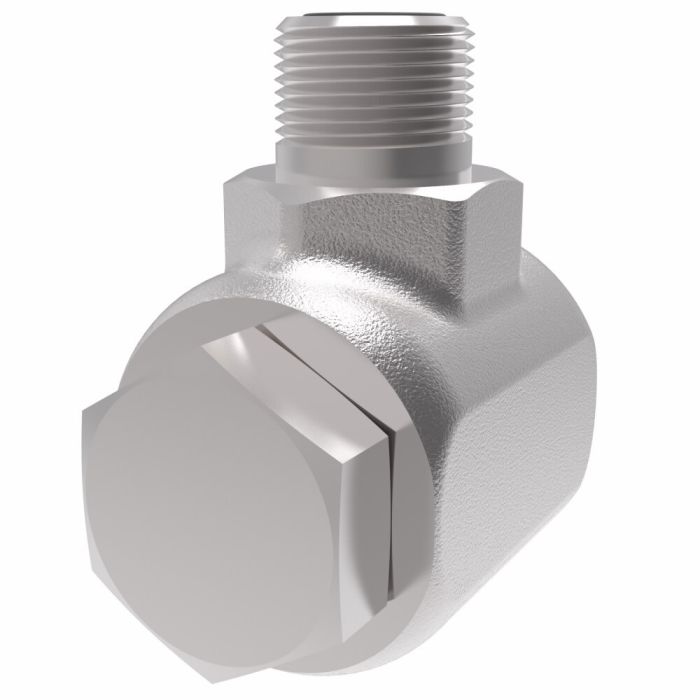

main product photo

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1-1/16-12 Male JIC 37 deg Flare Casing Thread To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) Sleeve Thread

Ask A Question

Description & Features

The FS65 Series Standard Duty Balanced Pressure Swivel Joint engineered by Danfoss Power Solutions (ii Llc Aeroquip) is designed for demanding industrial applications requiring reliable performance.

Featuring a 1-1/16-12 Male JIC 37deg; Flare Casing Thread to 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) configuration this swivel joint ensures optimal fluid transfer with minimal friction. The balanced-pressure design and 360deg; rotation capability offer seamless integration into various systems.

Built with standard o-ring seals and available in multiple options including Buna-N EPR and Vitonreg; it operates efficiently under conditions ranging from -40deg;F to high-pressure environments up to 3500 PSI for size 3/4rdquo;.

This product incorporates low-drop dimensions and contamination seals to enhance longevity and performance making it an ideal choice for demanding environments.

Supplied as part number FS65009-1212-01 this Danfoss/Eaton FS6500 Series Swivel Joint provides robust performance for various industrial fluid management needs.

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.28 in
b Dimensions
2.16 in
c Dimensions
2.36 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Male JIC, Male SAE ORB
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1176
Dimensions
3.31 in L x 3.31 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
3500 psi
Operating Temperature
-40 to 250 deg F
Seal
Buna-N
Seal Material
Buna-N
Segment Code
C
Series
FS6500 Series
Thread Size
1-1/16-12

Product Questions & Answers (2)

Question by: Wes P on May 13, 2025, 10:18 AM
got a swivel that needs to go from 1-1/16-12 JIC flare on one side to 1-1/16-12 ORB on the other. is that what this FS65009-1212-01 is?
Answer by: Customer Support on May 15, 2025, 6:17 AM
Match-up wise, FS65009-1212-01 is a male 1-1/16-12 JIC 37 degree flare on the casing end to a male 1-1/16-12 SAE O-Ring Boss straight thread on the sleeve end, both in a 3/4 nominal size.
Question by: Floyd S on Aug 6, 2025, 4:51 PM
What kind of seal does this swivel joint come with, and are there other options if I'm running something other than standard hydraulic oil?
Answer by: Customer Support on Aug 8, 2025, 6:01 AM
Buna-N is the standard seal, which works fine for most petroleum-based hydraulic fluids. If your system runs something more aggressive, there are two other options available. The -04 suffix gets you EPR seals, and the -06 suffix is Viton. So depending on what fluid you're pushing through it, you've got some flexibility in how you spec it out.
