04MFS-06FFSS 90 DEG ELBOW

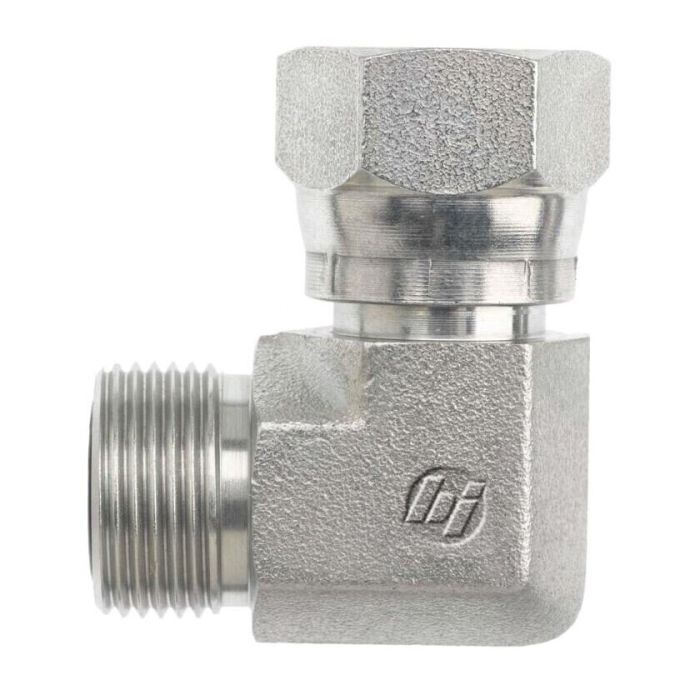

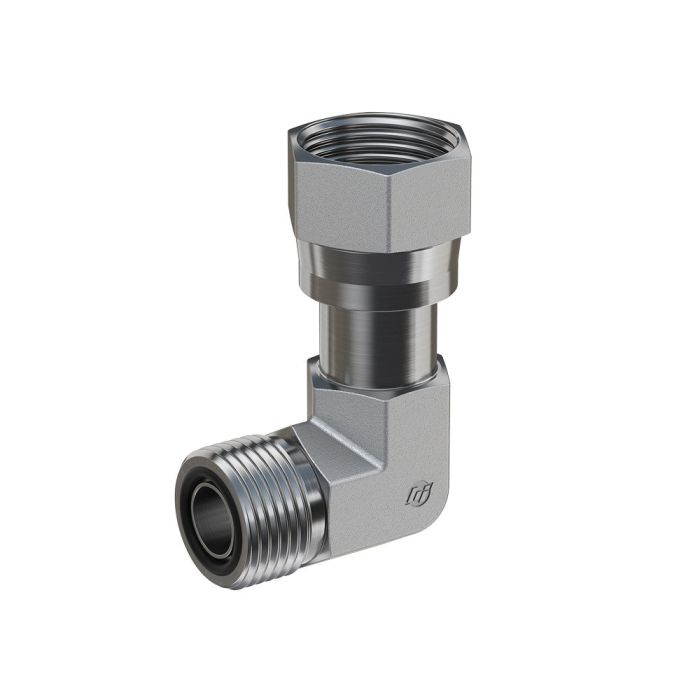

A forged 90-degree elbow designed for medium-pressure hydraulic line connections, the 04MFS-06FFSS 90 Deg Elbow from Brennan Industries joins a 9/16-18 male flareless seat (A) thread to an 11/16-16 female face seal (B) thread in a compact right-angle configuration. The forged construction provides consistent dimensional integrity suited to industrial hydraulic assemblies where reliable sealing at directional transitions is required.

Sized for 1/4 in. tube OD, this fitting carries an A-side drill of 0.172 in. and a B-side drill of 0.264 in. The overall assembly length measures 1.150 in., with a body length of 0.920 in. Wrench engagement is provided by a 0.812 in. C hex and a 0.750 in. JJ flats dimension, giving adequate purchase for proper torquing during installation. Part of the Brennan FS6500-FG series, this elbow is a practical choice for routing hydraulic lines in space-constrained installations.

SKU: FS6500-04-06-FG

Supplier Part Number (MPN): FS6500-04-06-FG

Alternate Part Numbers: AFF2098T0406S, FF6500-04-06
