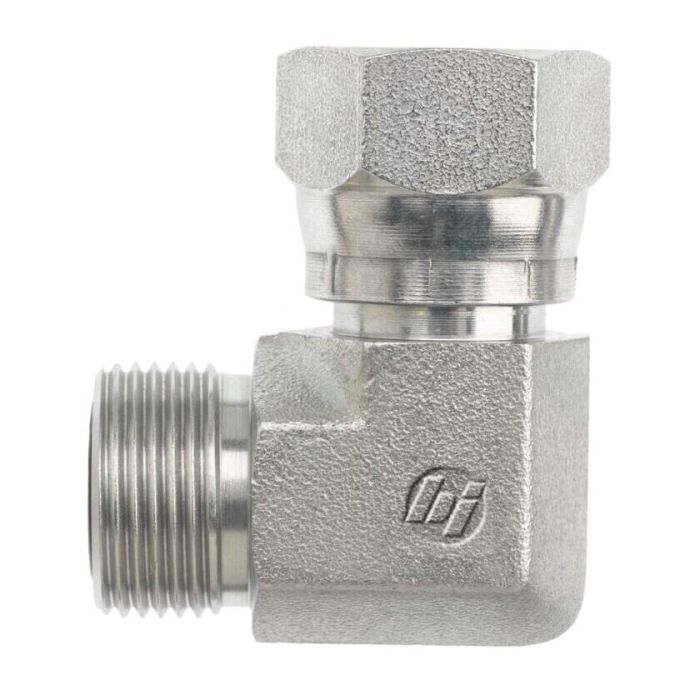

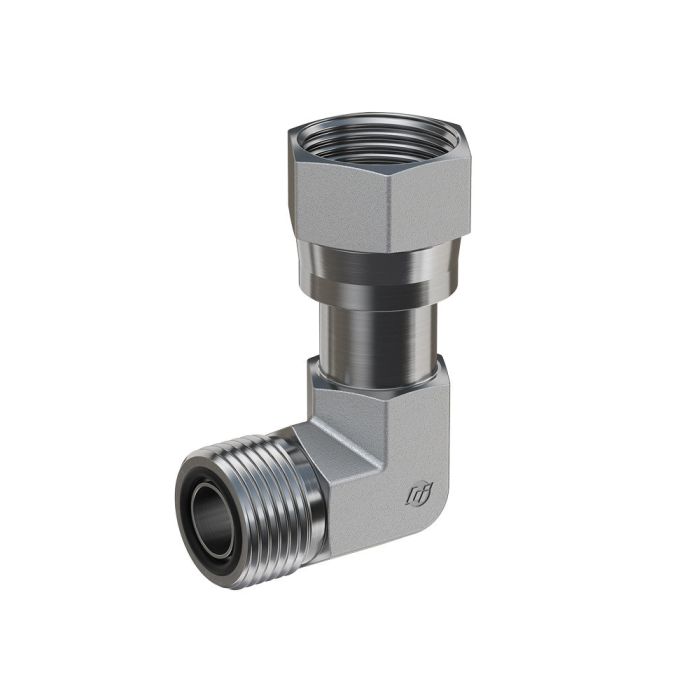

main product photo

20MFS-20FFSS 90 ELB

Ask A Question

Description & Features

The 20MFS-20FFSS 90 ELB by Brennan Industries Inc is a high-performance connector designed for industrial applications requiring a 90-degree elbow configuration.

Featuring a 1.024-inch drill on both ends it is engineered with a 1-11/16-12 thread on both connection points ensuring reliable and secure fittings. The hexagonal profile of 1.875 inches enhances operational efficiency while the 1.625-inch flats offer ease of installation and maintenance.

The product is part of the FS6500-FG series and is crafted with a forged build providing durability and longevity in demanding environments. The dimensions include a total length of 2.29 inches and a tube outer diameter of 1-1/4 inches. Its 1.76-inch length contributes to its compact yet robust design.

Suitable for various industrial systems the 20MFS-20FFSS 90 ELB ensures optimal performance and reliability. It is tailored to meet the needs of professional engineers and technicians.

MPN: FS6500-20-20-FG

Supplier Part Number: FS6500-20-20-FG

Specifications

Brand
BRENNAN
a Drill Dimensions
1.024 in
b Drill Dimensions
1.024 in
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Female ORFS Swivel, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Female SAE ORFS Swivel
Dimension Standards
SAE J1453
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-7/8 in
jj Flats Dimensions
1-5/8 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6500-FG Series
Thread Size
1-11/16-12
Tube Outside Diameter
1-1/4 in

Product Questions & Answers (1)

Question by: Rhonda W on Apr 18, 2025, 7:18 AM
Could you tell me if the 20MFS-20FFSS 90 ELB is suitable for high-pressure systems?
Answer by: Customer Support on Apr 20, 2025, 6:06 AM
The 20MFS-20FFSS 90-degree Elbow Forged is generally used in applications that require robust and reliable connections, such as high-pressure hydraulic systems. Its forged construction provides added strength, making it a solid choice for demanding environments. However, it's important to verify compatibility with your specific system requirements to ensure optimal performance.
