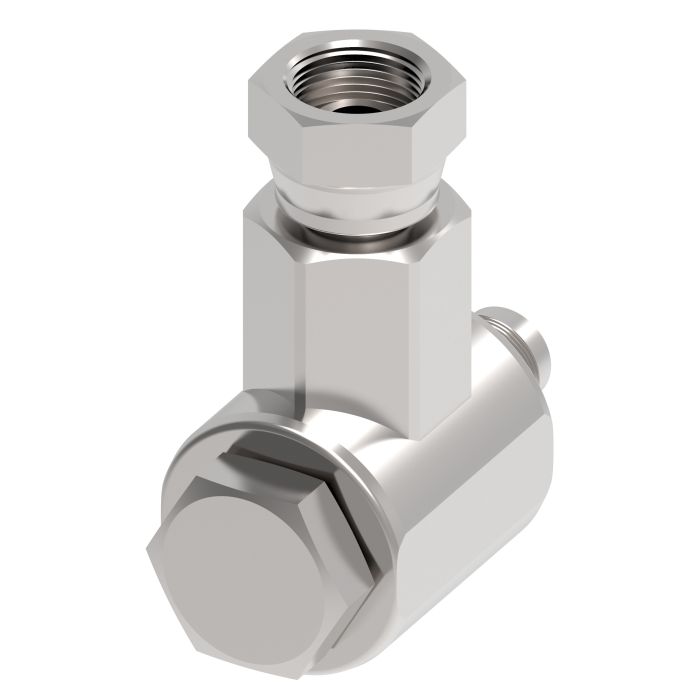

Danfoss / Eaton Swivel 90 Deg FPS X MJIC

Ask A Question

Description & Features

Designed for hydraulic systems requiring directional change at connection points, this 90-degree swivel joint connects a 3/8 in. female NPSM port to a 3/8 in. male SAE 37 (JIC) fitting. The Danfoss / Eaton Swivel 90 Deg FPS X MJIC is part of the Aeroquip FS6500 Series and is constructed from steel, making it well-suited for demanding industrial hydraulic applications.

The swivel design allows rotational movement at the joint, reducing hose stress and accommodating misalignment in tight or angled installations. A minimum working temperature rating of -40°F supports use in cold-environment applications. With a 15/16 in. hex on the male end, the fitting is straightforward to install with standard tooling.

SKU: FS65001-0606-01

Supplier Part Number (MPN): FS65001-0606-01

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female Swivel, Male JIC
Connection Type 1
Swivel Female Pipe
Connection Type 2
Male SAE 37 deg JIC
Dimensions
2.51 in L x 2.14 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Fluid
Glycol, Hydraulic Oils, Water
Hex Size
0.94 in
Material
Steel
Material Construction
Steel
Maximum Operating Pressure
5000 psi
nmfc
50
Operating Temperature
-40 to 250 deg F
Segment Code
C
Series
FS65001 Series
Thread Sealant
Without Thread Sealant
Thread Size
3/8-18, 9/16-18

Product Questions & Answers (1)

Question by: Danny M on May 12, 2025, 8:34 AM
What size is the hex on this swivel? Gotta make sure I have the right wrench handy.
Answer by: Customer Support on May 14, 2025, 6:14 AM
The hex size on the male end of this Danfoss/Eaton swivel is 15/16 in., or 0.9375 inches, so you'll need a wrench that fits that.
