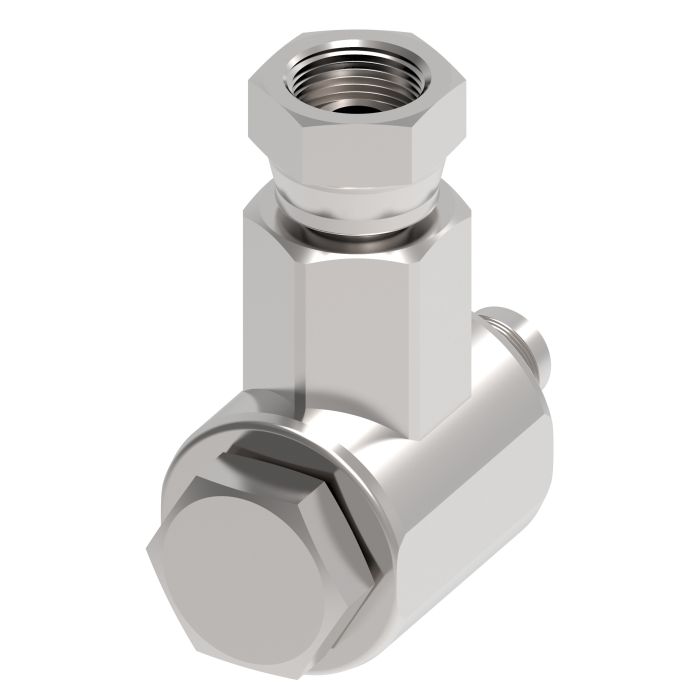

Danfoss / Eaton Swivel 90 Deg FPS X MJIC

Ask A Question

Description & Features

This steel swivel joint features a 90-degree configuration and is designed for hydraulic applications. It has a female NPSM end with a 0.375 inch size, and a male SAE 37 end with a 0.5 inch size. The Danfoss / Eaton Swivel 90 Deg FPS X MJIC is constructed from durable steel, ensuring reliable performance in demanding hydraulic environments. Minimum working temperature is -40 degrees.

The swivel joint's 0.375 inch swivel size and 0.9375 inch hex size 2 contribute to its ease of installation and secure fit. Suitable for a variety of hydraulic setups requiring 90-degree connections, this swivel joint facilitates smooth rotation and minimizes hose twisting.

SKU: FS65001-0608-01

Supplier Part Number (MPN): FS65001-0608-01

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female Swivel, Male JIC
Connection Type 1
Swivel Female Pipe
Connection Type 2
Male SAE 37 deg JIC
Dimensions
2.61 in L x 2.14 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Fluid
Glycol, Hydraulic Oils, Water
Hex Size
0.94 in
Material
Steel
Material Construction
Steel
Maximum Operating Pressure
5000 psi
nmfc
50
Operating Temperature
-40 to 250 deg F
Segment Code
C
Series
FS65001 Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16 x 3/8-18

Product Questions & Answers (1)

Question by: Bobby G on Jul 21, 2025, 7:03 PM
Will this swivel hold up okay in a hydraulic system that sees regular use, or is it more for lighter duty stuff?
Answer by: Customer Support on Jul 23, 2025, 2:38 PM
Constructed from durable steel, this swivel joint is designed to offer reliable performance even in demanding hydraulic environments. It should hold up just fine with regular use.
