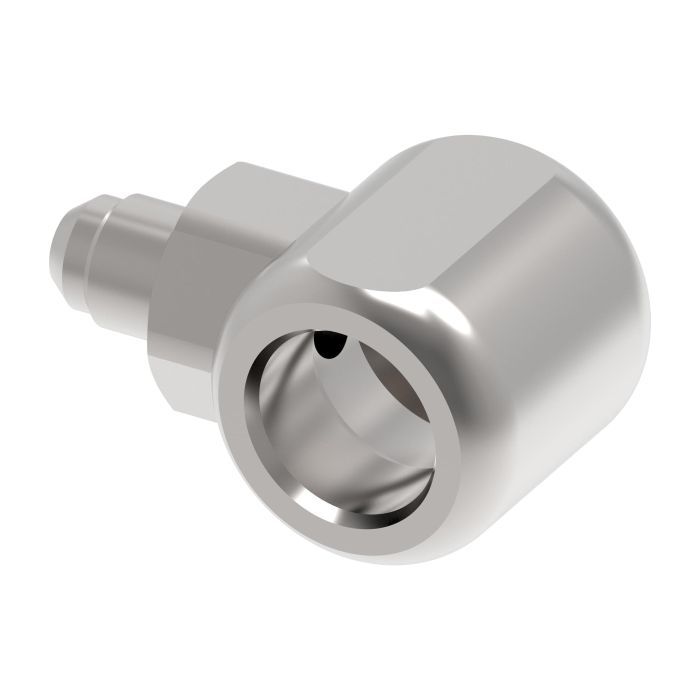

DANFOSS / EATON SWIVEL JOINT 90 DEG FPS X

Ask A Question

Description & Features

Designed for rotational flexibility in tight-clearance hydraulic assemblies, the Danfoss / Eaton Swivel Joint 90 Deg Fps X is a 90-degree swivel joint from the Eaton FS6500 Series. It connects a 1/4 in. female NPSM end to a 1/4 in. male ORB end, with a 15/16 in. hex on the ORB side for secure wrench engagement during installation.

Constructed from steel, this 1/4 in. swivel joint is suited for hydraulic lines where a fixed elbow would introduce stress or restrict movement. The 90-degree configuration allows for directional routing in confined spaces while maintaining a swiveling connection. A minimum working temperature rating of -40°F makes it compatible with cold-environment applications.

SKU: FS65002-0404-01

Supplier Part Number (MPN): FS65002-0404-01

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female Swivel, Male SAE ORB
Connection Type 1
Swivel Female Pipe
Connection Type 2
Male SAE ORB
Dimensions
2.39 in L x 2.14 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Fluid
Glycol, Hydraulic Oils, Water
Hex Size
0.94 in
Material
Steel
Material Construction
Steel
Maximum Operating Pressure
5000 psi
nmfc
50
Operating Temperature
-40 to 250 deg F
Segment Code
C
Series
FS65002 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/16-20, 1/4-18

Product Questions & Answers (1)

Question by: Sheila B on Jul 25, 2025, 3:02 PM
What kinda stuff is this swivel joint good for, like what would I use it on?
Answer by: Customer Support on Jul 26, 2025, 9:42 PM
Suited for hydraulic lines, this swivel joint is especially useful where a fixed elbow would cause stress or limit movement. The 90-degree design helps with routing in tight spots while still allowing the joint to swivel.
