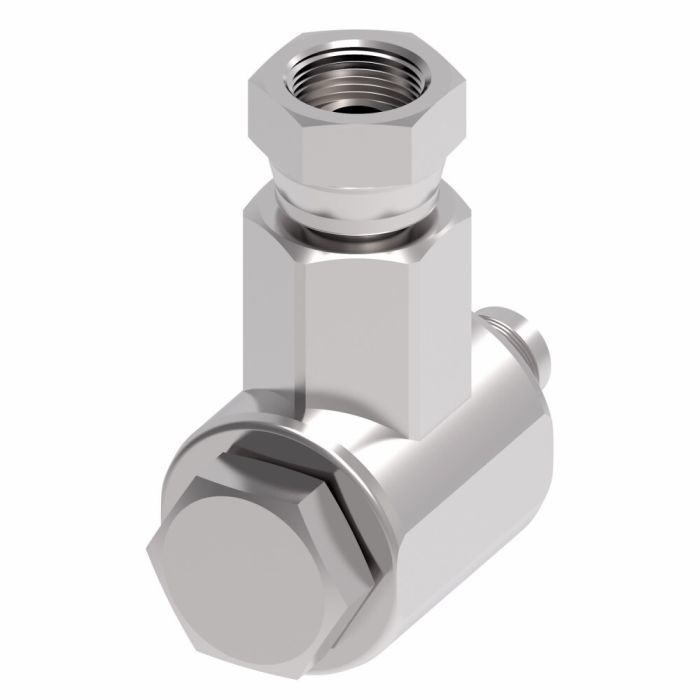

main product photo

Danfoss / Eaton Swivel Joint 90 Deg FPS X

Ask A Question

Description & Features

Designed for rotational flexibility in hydraulic circuits, the Danfoss / Eaton Swivel Joint 90 Deg FPS X connects a 1/2 in. NPSM female end to a 1/2 in. ORB male end at a 90-degree angle, allowing lines to pivot freely and reducing stress on fittings under movement or vibration. The swivel size is 1/2 in., and the male hex measures 1 in. across.

Constructed from steel, this fitting is rated for a minimum working temperature of -40°F, making it suitable for demanding environments where thermal range matters. Part of the Aeroquip FS6500 Series, it is built for industrial hydraulic applications where articulating connections are required between fixed and moving components. The package weight is approximately 1 lb.

SKU: FS65002-0808-01

Supplier Part Number (MPN): FS65002-0808-01

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
FNPSM Swivel, Male SAE ORB
Connection Type 1
FNPSM Swivel
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1176
Dimensions
2.55 in L x 2.39 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Fluid
Glycol, Hydraulic Oils, Water
Material
Steel
Material Construction
Steel
Maximum Operating Pressure
3500 psi
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
Buna-N
Segment Code
C
Series
FS6500 Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16 x 1/2-14

Product Questions & Answers (1)

Question by: Scott M on Mar 5, 2026, 12:56 PM
Will this swivel joint hold up to some vibration on a piece of mobile equipment?
Answer by: Customer Support on Mar 7, 2026, 11:11 AM
Yes, this swivel joint is designed to reduce stress on fittings where there's movement or vibration, particularly in industrial hydraulic applications.
