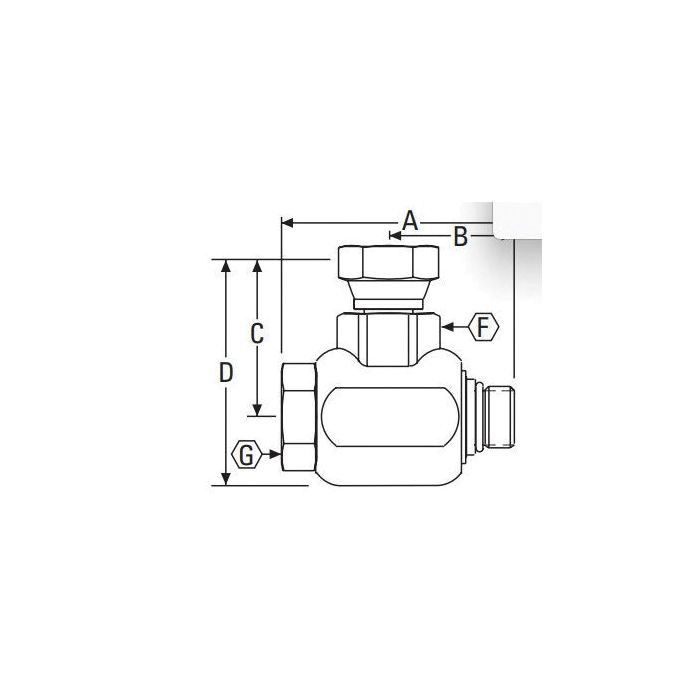

DANFOSS / EATON SWIVEL JOINT

Description & Features

This Eaton Aeroquip swivel joint is constructed of steel and designed for a minimum working temperature of -40°F. The DANFOSS / EATON SWIVEL JOINT features a 0.75 inch swivel size.

This swivel joint complete has a female NPSM end and a male ORB end, both with a 0.75 inch size. The hex size is 1.25 inches. Consult the product documentation for fluid compatibility information.

SKU: FS65002-1212-01

Supplier Part Number (MPN): FS65002-1212-01

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
FNPSM Swivel, Male SAE ORB
Connection Type 1
FNPSM Swivel
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1176
Dimensions
3.28 in L x 3.09 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
3500 psi
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
Buna-N
Segment Code
C
Series
FS6500 Series
Thread Size
1-1/16-12 x 3/4-14

Similar Products

Model Number Connection Size 1 Connection Size 2 Connection Type Dimensions Price Action
FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1-11-1/2 Female Pipe Casing Thread To 1-11-1/2 Female Pipe Sleeve Thread

FS65008-1616-01 FS65 Series Swivel Joint

1 in

1 in

FNPT

3.84 in L x 3.7 in H

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1/2-14 Female Pipe Casing Thread To 1/2-14 Female Pipe Sleeve Thread

FS65008-0808-01 FS65 Series Swivel Joint

1/2 in

1/2 in

FNPT, MNPT

3.14 in L x 2.65 in H

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 3/8-18 Female Pipe Casing Thread To 3/8-18 Female Pipe Sleeve Thread

FS65008-0606-01 FS65 Series Swivel Joint

3/8 in

3/8 in

FNPT

2.49 in L x 2.28 in H

DANFOSS / EATON SWIVEL JOINT 90 DEG MJIC

FS65003-0808-01

1/2 in

1/2 in

Male JIC, MNPT

2.88 in L x 2.66 in H

Danfoss / Eaton Swivel Joint

FS65003-1212-01

3/4 in

3/4 in

Male JIC, MNPT

3.21 in L x 3.31 in H

DANFOSS / EATON SWIVEL JOINT 90 DEG MJIC

FS65004-1010-01

5/8 in

5/8 in

Male JIC

2.87 in L x 2.77 in H

Danfoss / Eaton Swivel Joint Male JIC X Male JIC

FS65004-1212-01

3/4 in

3/4 in

Male JIC

3.31 in L x 3.31 in H

Danfoss / Eaton Swivel Joint 90 Deg FP X

FS65008-0404-01

1/4 in

1/4 in

FNPT

2.49 in L x 2.27 in H

Danfoss / Eaton Swivel Joint 90 Deg FP X

FS65008-0808-06

1/2 in

1/2 in

FNPT

3.14 in L x 2.65 in H

DANFOSS / EATON #12 FP(RIGID) X #12 FP HYD. SWIVEL

FS65008-1212-01

3/4 in

3/4 in

FNPT

3.21 in L x 3.25 in H

Danfoss / Eaton Swivel Joint

FS65008-1616-06

1 in

1 in

FNPT

3.84 in L x 3.7 in H

DANFOSS / EATON SWIVEL

FS65009-0808-01

1/2 in

1/2 in

Male JIC, Male SAE ORB

2.61 in L x 2.46 in H

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1-1/16-12 Male JIC 37 deg Flare Casing Thread To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) Sleeve Thread

FS65009-1212-01 FS65 Series Swivel Joint

3/4 in

3/4 in

Male JIC, Male SAE ORB

3.31 in L x 3.31 in H

Product Questions & Answers (3)

Question by: Shawn K on Apr 17, 2025, 7:07 AM
got a 3/4 female NPSM port on a cylinder that needs to hook up to a 3/4 ORB line, this swivel gonna bridge that gap?
Answer by: Customer Support on Apr 18, 2025, 8:36 PM
That's exactly what this fitting handles. One end is a 3/4 inch female NPSM, the other is a 3/4 inch male ORB, so it connects those two thread types directly without any adapters in between. Both ends are the same size, so there's no reducer involved. The hex is 1.25 inches if you're torquing it down with a wrench.
Question by: Neal R on Aug 25, 2025, 9:35 AM
What kind of fluids can this swivel joint handle?
Answer by: Customer Support on Aug 27, 2025, 7:44 AM
Fluid compatibility info can be found in the product documentation. You can find a link to it under the "Documentlink Fluid Compatibility 1" attribute.
Question by: Pete T on Nov 12, 2025, 2:30 PM
trying to swap out an old swivel, are the ends on this one 3/4 female NPSM on one side and 3/4 male ORB on the other?
Answer by: Customer Support on Nov 14, 2025, 6:42 AM
It’s a swivel joint complete with a 0.75 inch female NPSM end on one side and a 0.75 inch male ORB end on the other.
