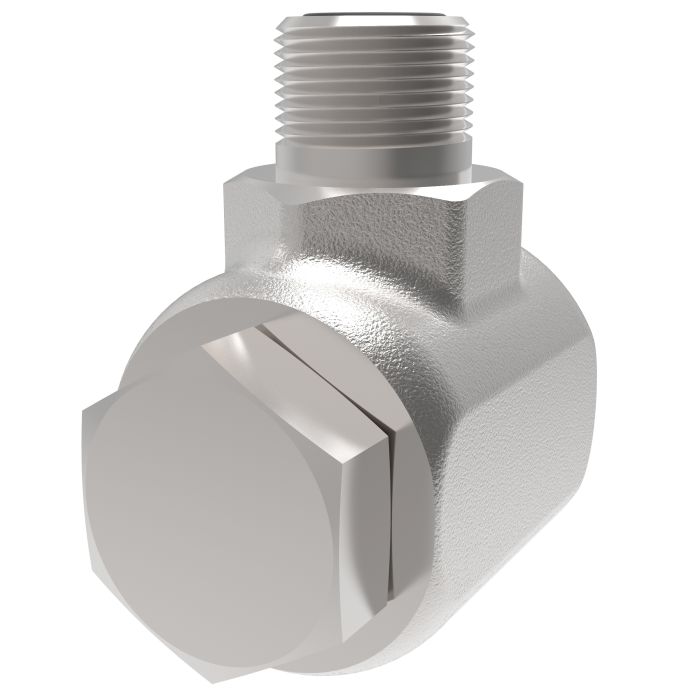

main product photo

DANFOSS / EATON SWIVEL JOINT 90 DEG MJIC

Ask A Question

Description & Features

This Danfoss / Eaton Swivel Joint features a 90-degree MJIC design, constructed from durable steel for reliable performance in demanding hydraulic applications. It is designed with a male SAE 37 end with a 0.3125 inch size and a male NPTF end with a 0.25 inch size.

The swivel joint is suitable for use in environments with a minimum working temperature of -40 degrees. This swivel fitting allows connection between two ports at a 90 degree angle.

SKU: FS65003-0504-01

Supplier Part Number (MPN): FS65003-0504-01

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male JIC, MPT
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
Male Pipe
Dimensions
2.6 in L x 2.35 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Fluid
Glycol, Hydraulic Oils, Water
Hex Size
0.94 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
5000 psi
nmfc
50
Operating Temperature
-40 to 250 deg F
Segment Code
C
Series
FS65003 Series
Thread Sealant
Without Thread Sealant
Thread Size
1/2-20 x 1/4-18

Product Questions & Answers (1)

Question by: Kurt C on Jul 8, 2025, 7:25 AM
Will this swivel joint hold up alright in a hydraulic system that sees some pretty cold weather?
Answer by: Customer Support on Jul 9, 2025, 10:37 AM
Constructed from durable steel and rated for a minimum working temperature of -40 degrees, this swivel joint should perform reliably even in very cold conditions.
