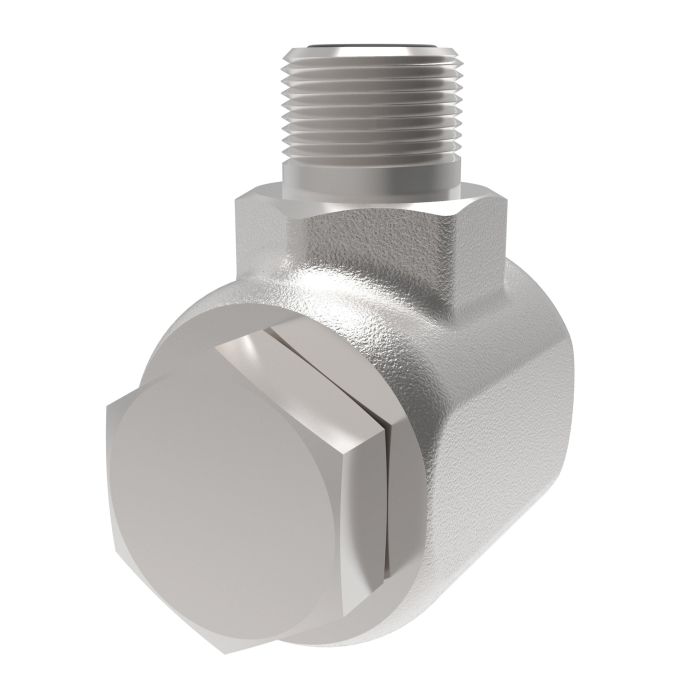

Danfoss / Eaton Swivel Joint

Description & Features

The Danfoss / Eaton FS6500 Series Swivel Joint is designed for robust hydraulic applications, ensuring reliable fluid transfer in demanding environments. Featuring a male SAE 37 degree and NPTF connection, this swivel joint is crafted from durable steel, providing excellent resistance to wear and corrosion. Its compact design, with a product width of 1.63 inches and a hex size of 1.625 inches, allows for easy integration into tight spaces without compromising performance.

Engineered to withstand harsh conditions, this swivel joint operates efficiently across a wide temperature range, from a minimum working temperature of -40 degrees, making it suitable for diverse industrial settings. The FS65003-1616-01 model incorporates a 1-inch swivel size, ensuring compatibility with various hydraulic systems. For additional technical information, refer to the product's catalog and fluid compatibility documents available through Eaton's online resources.

SKU: FS65003-1616-01

Supplier Part Number (MPN): FS65003-1616-01

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
Male NPTF
Dimension Standards
SAE J1176
Dimensions
3.91 in L x 3.68 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Fluid
Glycol, Hydraulic Oils, Water
Hex Size
1-5/8 x 1-11/16 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
3000 psi
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
Buna-N
Segment Code
C
Series
FS6500 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/16-12 x 1-11-1/2 x 1-5/16-12

Similar Products

Model Number Connection Size 1 Connection Size 2 Connection Type Dimensions Price Action
FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1-11-1/2 Female Pipe Casing Thread To 1-11-1/2 Male Pipe Sleeve Thread

FS65007-1616-01 FS65 Series Swivel Joint

1 in

1 in

FNPT, MNPT

3.91 in L x 3.7 in H

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1/2-14 Female Pipe Casing Thread To 1/2-14 Male Pipe Sleeve Thread

FS65007-0808-01 FS65 Series Swivel Joint

1/2 in

1/2 in

FNPT, MNPT

2.88 in L x 2.65 in H

Danfoss / Eaton Swivel Joint 90 Deg FP X

FS65007-0404-01

1/4 in

1/4 in

FNPT, MNPT

2.6 in L x 2.27 in H

Danfoss / Eaton Swivel Joint 90 Deg FP X

FS65007-0606-01

3/8 in

3/8 in

FNPT, MNPT

2.53 in L x 2.28 in H

Danfoss / Eaton Swivel Joint

FS65007-1212-01

3/4 in

3/4 in

FNPT, MNPT

3.21 in L x 3.25 in H

Danfoss / Eaton Aeroquip FS65 Series Swivel Joint

FS65009-1616-01

1 in

1 in

Male JIC, Male SAE ORB

3.86 in L x 3.68 in H

Product Questions & Answers (1)

Question by: Eddie H on Dec 31, 2025, 5:44 PM
Can this swivel joint handle cold weather without issues?
Answer by: Customer Support on Jan 1, 2026, 8:09 PM
Yes sir, this swivel joint is made to hold up in the cold. It can handle temps as low as -40 degrees.
