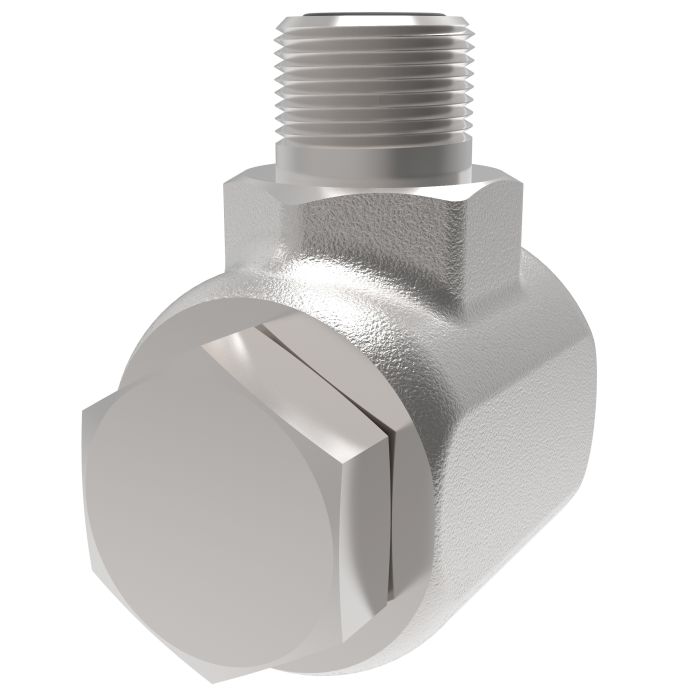

DANFOSS / EATON SWIVEL JOINT 90 DEG MJCX

Ask A Question

Description & Features

This Danfoss / Eaton swivel joint features a 90-degree MJCX configuration for versatile connection options. Constructed from durable steel, this swivel joint is suitable for a range of hydraulic applications.

This swivel joint offers a minimum working temperature of -40 degrees. It features male SAE 37-degree end connections, both with a 0.375-inch size. The hex size 2 measures 0.9375 inches.

SKU: FS65004-0606-01

Supplier Part Number (MPN): FS65004-0606-01

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
Male SAE 37 deg JIC
Dimensions
2.51 in L x 2.36 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Fluid
Glycol, Hydraulic Oils, Water
Hex Size
0.94 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
5000 psi
nmfc
50
Segment Code
C
Series
FS65004 Series
Thread Sealant
Without Thread Sealant
Thread Size
9/16-18

Product Questions & Answers (1)

Question by: Lyle P on Nov 29, 2025, 9:07 AM
Will this swivel joint hold up okay in a hydraulic system that gets pretty cold?
Answer by: Customer Support on Dec 1, 2025, 6:46 AM
With a minimum working temperature of -40 degrees, this swivel joint is designed to function in cold environments.
