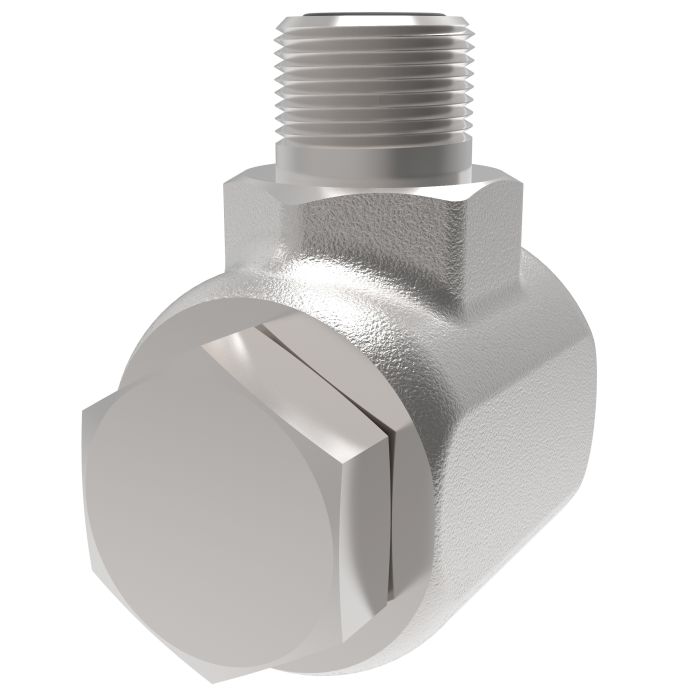

main product photo

DANFOSS / EATON SWIVEL JOINT 90 DEG MJIC

Ask A Question

Description & Features

Designed for use in hydraulic systems requiring a 90-degree directional change, the Danfoss / Eaton Swivel Joint 90 Deg Mjic is part of the Aeroquip FS6500 Series and features dual male JIC (SAE 37) ends in a 1/2-inch end size configuration. The swivel design allows rotational movement at the joint, reducing stress on connected lines during installation and service.

Constructed from steel, this swivel joint is rated for a minimum working temperature of -40°F, making it suitable for demanding industrial hydraulic environments. The 3/8-inch swivel size and 15/16-inch hex on the second end are consistent with standard hydraulic fitting tooling. Fluid compatibility documentation is available from Eaton, covering a range of hydraulic media typically used with this fitting series.

SKU: FS65004-0808-01

Supplier Part Number (MPN): FS65004-0808-01

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
Male SAE 37 deg JIC
Dimensions
2.61 in L x 2.46 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Fluid
Glycol, Hydraulic Oils, Water
Hex Size
0.94 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
3500 psi
nmfc
50
Segment Code
C
Series
FS65004 Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16

Product Questions & Answers (1)

Question by: Johnny W on Sep 12, 2025, 2:44 PM
Will this swivel joint handle cold weather without cracking?
Answer by: Customer Support on Sep 14, 2025, 6:30 AM
This joint is constructed from steel and rated for a minimum working temperature of -40°F, so it can definitely withstand demanding industrial hydraulic environments in cold conditions.
