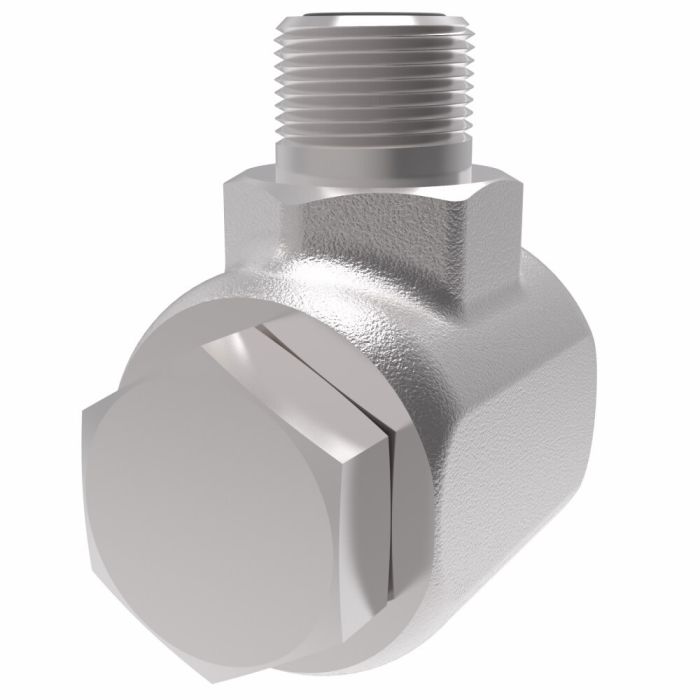

Danfoss / Eaton Swivel Joint Male JIC X Male JIC

Ask A Question

Description & Features

This Danfoss / Eaton Swivel Joint Male JIC X Male JIC is constructed of durable steel, offering reliable performance in demanding hydraulic applications.

Featuring male SAE 37° flared JIC ends measuring 0.75 inches, this swivel joint allows for connection between hydraulic lines. It withstands minimum working temperatures down to -40 degrees.

SKU: FS65004-1212-01

Supplier Part Number (MPN): FS65004-1212-01

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
Male SAE 37 deg JIC
Dimension Standards
SAE J1176
Dimensions
3.31 in L x 3.31 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
3500 psi
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
Buna-N
Segment Code
C
Series
FS6500 Series
Thread Size
1-1/16-12

Product Questions & Answers (1)

Question by: Darryl K on May 3, 2025, 8:17 PM
Reckon this swivel joint would hold up okay in a hydraulic system running at, say, -20 degrees?
Answer by: Customer Support on May 5, 2025, 6:34 AM
This Danfoss/Eaton swivel joint is rated for minimum working temperatures down to -40 degrees, so it should be suitable for your needs.
