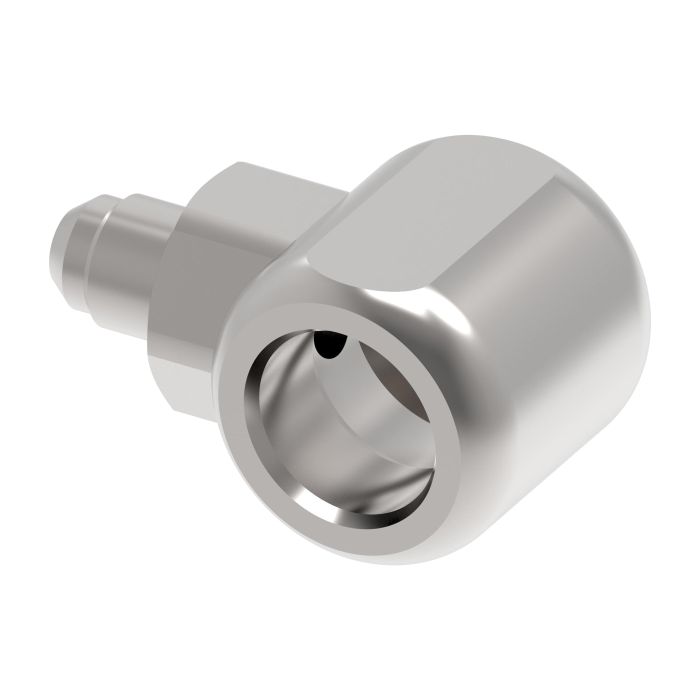

DANFOSS / EATON SWIVEL JOINT 90 DEGREE 1/4 INCH FEMALE PIPE SWIVEL

Ask A Question

Description & Features

This Eaton Aeroquip swivel joint features a 90-degree angle and is constructed from steel for durability. It is designed with a 1/4 inch female NPSM end and a 1/4 inch female NPTF end.

The DANFOSS / EATON SWIVEL JOINT 90 DEGREE 1/4 INCH FEMALE PIPE SWIVEL is suitable for applications requiring a compact and reliable connection. It withstands a minimum working temperature of -40 degrees. This swivel joint ensures a secure and leak-free connection in hydraulic systems.

SKU: FS65005-0404-01

Supplier Part Number (MPN): FS65005-0404-01

Alternate Part Numbers: C1FH47

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female Swivel, FPT
Connection Type 1
Swivel Female Pipe
Connection Type 2
Female Pipe
Dimensions
2.49 in L x 2.14 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Fluid
Glycol, Hydraulic Oils, Water
Hex Size
0.94 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
5000 psi
nmfc
50
Operating Temperature
-40 to 250 deg F
Segment Code
C
Series
FS65005 Series
Thread Sealant
Without Thread Sealant
Thread Size
1/4-18

Product Questions & Answers (1)

Question by: Phil M on Jun 28, 2025, 10:56 AM
what's the thread setup on this thing? got a 1/4 inch line coming off a pump and need to make a 90 turn without a lot of fuss
Answer by: Customer Support on Jun 29, 2025, 7:28 PM
One end is 1/4 inch female NPSM and the other is 1/4 inch female NPTF. The NPSM end uses straight mechanical threads, while the NPTF end is a tapered pipe thread that seals on the threads themselves. If your pump port is NPTF and you're running a swivel fitting on the other side, this setup covers that combination in a compact 90-degree package.
