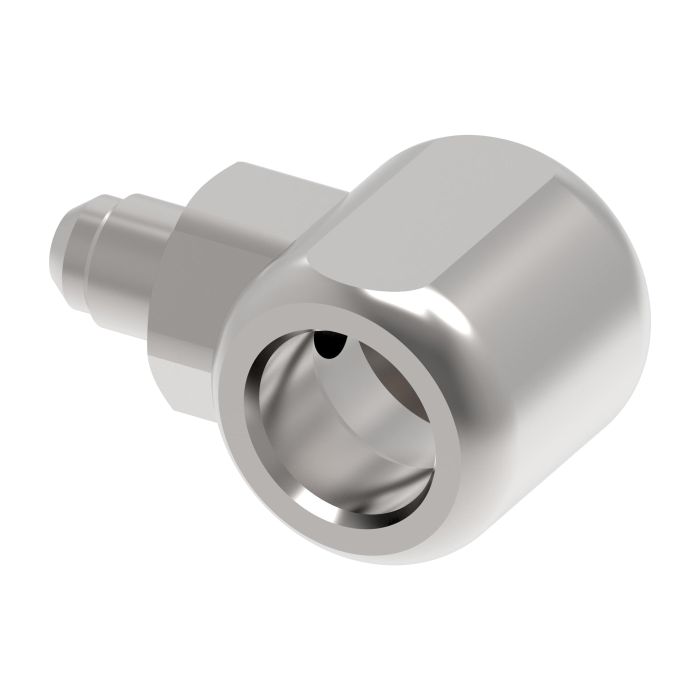

DANFOSS / EATON #16 FPS X #16 FP HYD .SWIVEL 90*

Description & Features

The Danfoss / Eaton FS6500 Series Swivel Joint is expertly designed to facilitate fluid rotation in high-pressure hydraulic systems. Constructed from durable steel, this swivel joint features two female NPTF ends, each sized at 1 inch, ensuring robust connections and optimal fluid flow. Its 90-degree configuration is ideal for applications requiring angular fluid routing while maintaining a secure seal. Suitable for use in industrial environments, this joint guarantees performance even in extreme temperatures, with a minimum working temperature of -40 degrees Fahrenheit.

Precision-engineered with a hex size of 1.625 inches, the joint allows for easy installation and maintenance. The Aeroquip brand affiliation ensures compatibility with a wide range of hydraulic fluids, supported by detailed fluid compatibility documentation. This swivel joint is a reliable choice for maintaining efficient hydraulic systems.

SKU: FS65005-1616-01

Supplier Part Number (MPN): FS65005-1616-01

Alternate Part Numbers: C1FK63

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
FNPT
Connection Type 1
Female NPTF
Connection Type 2
Female NPTF
Dimension Standards
SAE J1176
Dimensions
3.84 in L x 3.48 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Fluid
Glycol, Hydraulic Oils, Water
Hex Size
1-5/8 x 1-11/16 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
3000 psi
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
Buna-N
Segment Code
C
Series
FS6500 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-11-1/2

Similar Products

Model Number Connection Size 1 Connection Size 2 Dimensions Price Action
FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1/2-14 NPSM Female Pipe Swivel Casing Thread To 1/2-14 Female Pipe Sleeve Thread

FS65005-0808-01 FS65 Series Swivel Joint

1/2 in

1/2 in

3.14 in L x 2.39 in H

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 3/4-14 NPSM Female Pipe Swivel Casing Thread To 3/4-14 Female Pipe Sleeve Thread

FS65005-1212-01 FS65 Series Swivel Joint

3/4 in

3/4 in

3.21 in L x 3.09 in H

Product Questions & Answers (1)

Question by: Denise P on Aug 10, 2025, 7:41 AM
Reckon this'll hold up in a colder environment?
Answer by: Customer Support on Aug 12, 2025, 7:21 AM
It's rated to handle temps as low as -40 degrees Fahrenheit, so it should do just fine even when it gets real cold.
