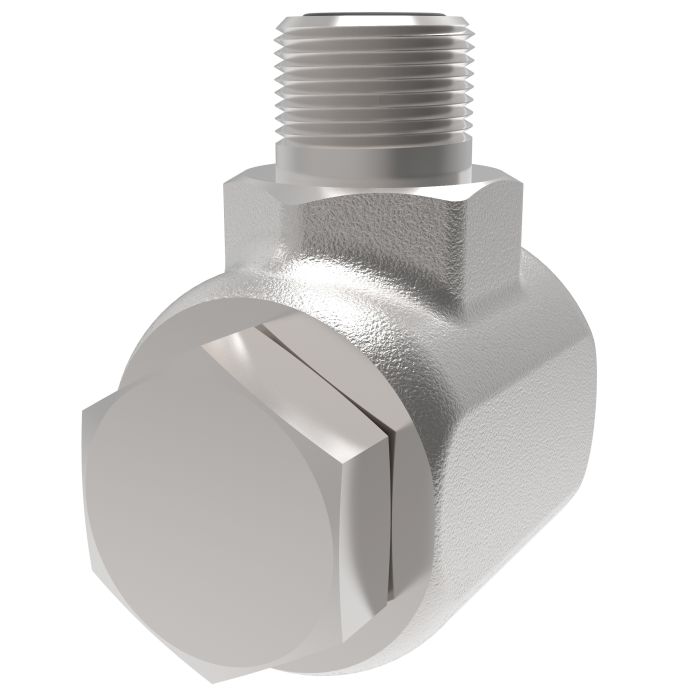

Danfoss / Eaton Swivel Joint 90 Deg MP X

Ask A Question

Description & Features

Designed for 90-degree swivel connections in hydraulic systems, the Danfoss / Eaton Swivel Joint 90 Deg MP X is a steel-constructed fitting from the FS6500 Series, built to handle demanding industrial fluid transfer applications. Both ends feature 1/2 in. male NPTF threads, providing a secure, leak-resistant connection on each side of the joint.

The swivel design allows rotational movement at the connection point, reducing strain on adjacent fittings and hose assemblies during installation or service. Rated for use down to -20°F minimum working temperature, this fitting is suited for industrial environments where thermal variation is a factor. The 1 in. hex size on the second end facilitates straightforward installation with standard tooling. Aeroquip branding applies to this product line.

SKU: FS65006-0808-06

Supplier Part Number (MPN): FS65006-0808-06

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
MNPT
Connection Type 1
Male NPTF
Connection Type 2
Male NPTF
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Fluid
Aromatic solvents, Chemicals, Gasoline
Hex Size
1.142 in, 1 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
3500 psi
nmfc
50
Operating Temperature
300 deg F
Segment Code
C
Series
FS65006 Series
Thread Sealant
Without Thread Sealant
Thread Size
1/2-14

Product Questions & Answers (1)

Question by: Cody G on Nov 14, 2025, 5:15 PM
What kind of environment can this swivel joint handle?
Answer by: Customer Support on Nov 16, 2025, 8:08 AM
Rated for use down to -20°F minimum working temperature, this fitting is suited for industrial environments where thermal variation is a factor.
