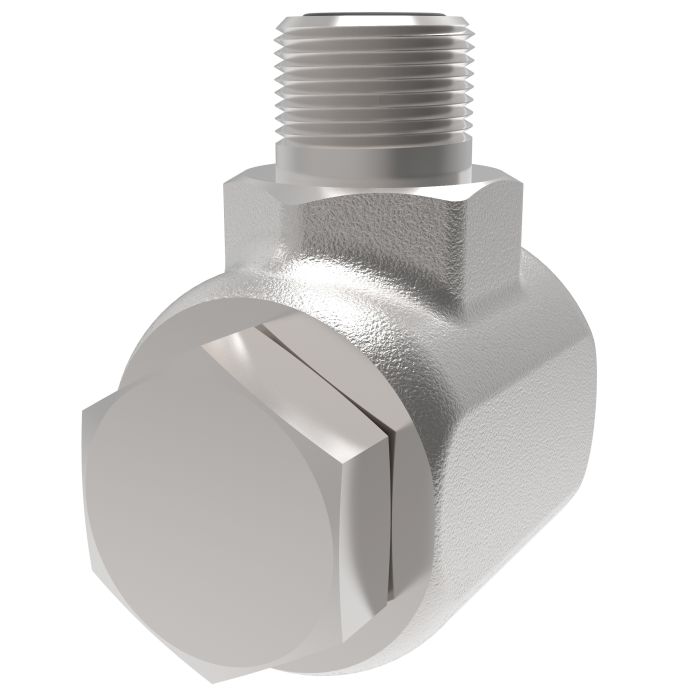

main product photo

Danfoss / Eaton Swivel Joint

Ask A Question

Description & Features

Designed for rotational flexibility in high-demand hydraulic circuits, the Danfoss / Eaton Swivel Joint from the FS6500 Series allows fluid transfer between moving and stationary components without line twist or stress. Both ends feature 1-inch male NPTF threaded connections, making this a straightforward male-to-male configuration suited for a wide range of industrial hydraulic assemblies.

Constructed from steel and rated for a minimum working temperature of -40°F, this swivel joint is built to perform reliably in demanding environments. The 1.625-inch hex size on the secondary end facilitates installation with standard tooling. It fits well into both planned maintenance and urgent replacement scenarios.

Fluid compatibility documentation is available through Eaton's published resources, supporting proper material selection for specific hydraulic media.

SKU: FS65006-1616-01

Supplier Part Number (MPN): FS65006-1616-01

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
MPT
Connection Type 1
Male Pipe
Connection Type 2
Male Pipe
Dimensions
3.91 in L x 3.68 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Hex Size
1-5/8
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-40 to 250 deg F
Segment Code
A
Series
FS65006 Series
Thread Size
1-11-1/2

Product Questions & Answers (1)

Question by: Hank F on Nov 9, 2025, 9:09 PM
Is this Eaton swivel joint gonna fit right in my hydraulic setup? I got one-inch NPTF threads already.
Answer by: Customer Support on Nov 11, 2025, 8:05 PM
This Danfoss/Eaton swivel joint is made with 1-inch male NPTF threaded connections on both ends, so it should integrate directly into your existing system if that's what you're running.
