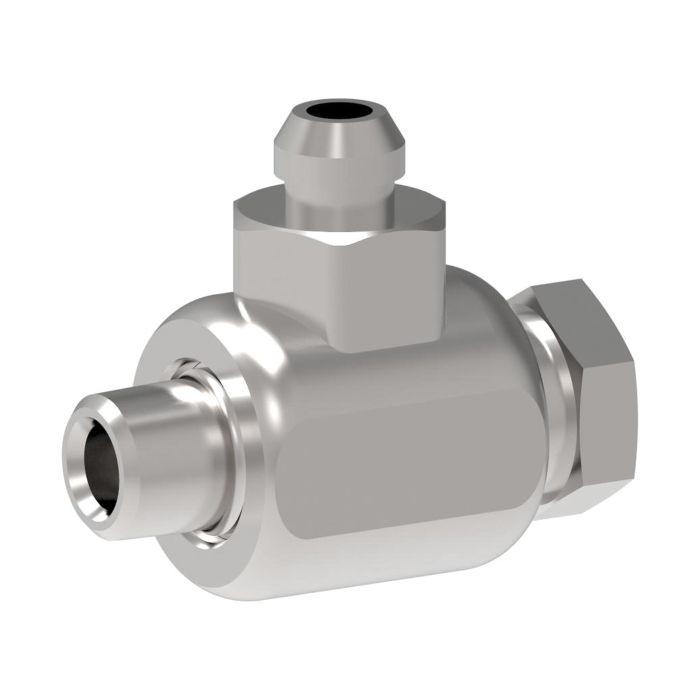

Danfoss / Eaton Swivel Joint 90 Deg FP X

Ask A Question

Description & Features

This Eaton Aeroquip swivel joint is a 90-degree fitting with female to male NPTF connections. It features a steel construction, ensuring durability and reliability in demanding hydraulic applications. The Danfoss / Eaton Swivel Joint 90 Deg FP X is designed to provide a secure and leak-free connection while allowing for 360-degree rotation, preventing hose twisting and kinking.

With a swivel size of 0.25 inch, and end sizes of 0.25 inch, this swivel joint is suitable for a variety of hydraulic systems. It is designed to operate in temperatures as low as -40 degrees. The hex size for end 2 is 0.9375 inches.

SKU: FS65007-0404-01

Supplier Part Number (MPN): FS65007-0404-01

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
FNPT, MNPT
Connection Type 1
Female NPTF
Connection Type 2
Male NPTF
Dimension Standards
SAE J1176
Dimensions
2.6 in L x 2.27 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Fluid
Glycol, Hydraulic Oils, Water
Hex Size
0.94 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
5000 psi
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
Buna-N
Segment Code
C
Series
FS6500 Series
Thread Sealant
Without Thread Sealant
Thread Size
1/4-18

Product Questions & Answers (3)

Question by: Gary T on Jul 31, 2025, 6:17 AM
What kind of temperatures can this swivel joint handle?
Answer by: Customer Support on Aug 2, 2025, 6:18 AM
This swivel joint is designed to work in temperatures as low as -40 degrees.
Question by: Ross R on May 15, 2025, 6:04 PM
got a 1/4 nptf line and need a 90 that’ll swivel, is this one female to male or what
Answer by: Customer Support on May 17, 2025, 8:00 AM
Female NPTF on one end and male NPTF on the other, both in 1/4 inch size. It’s a 90 degree swivel joint and it will rotate 360 degrees to help keep a hose from twisting up.
Question by: Terry C on Apr 6, 2025, 11:19 AM
Got a hose that keeps twisting up on me in a tight spot, would a 90-degree swivel joint like this one help keep it from kinking out?
Answer by: Customer Support on Apr 8, 2025, 10:17 AM
Yeah, that's exactly the kind of situation this fitting handles well. The 360-degree rotation built into it means the hose can move without building up twist or tension. The 90-degree angle also helps you route things cleanly when you're working in a confined area where a straight fitting just won't lay right. Both ends are 1/4 inch NPTF, so as long as your ports match up, you're good to go.
