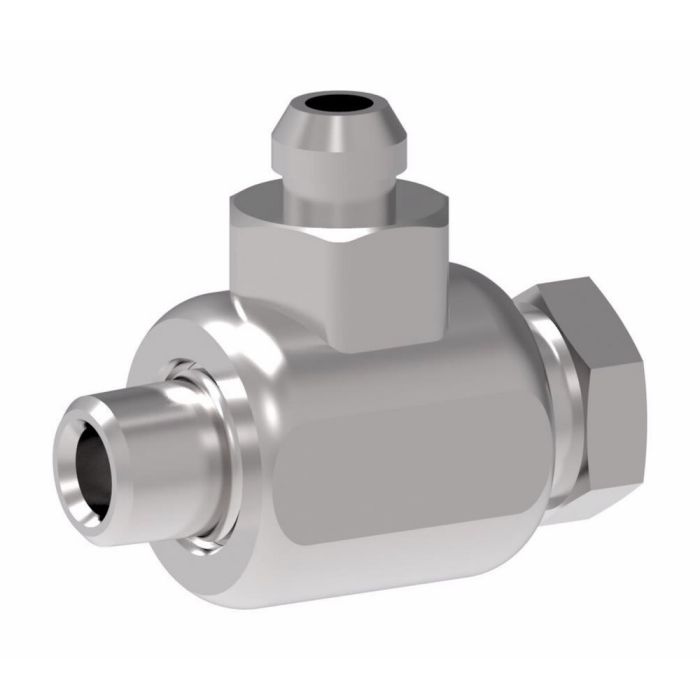

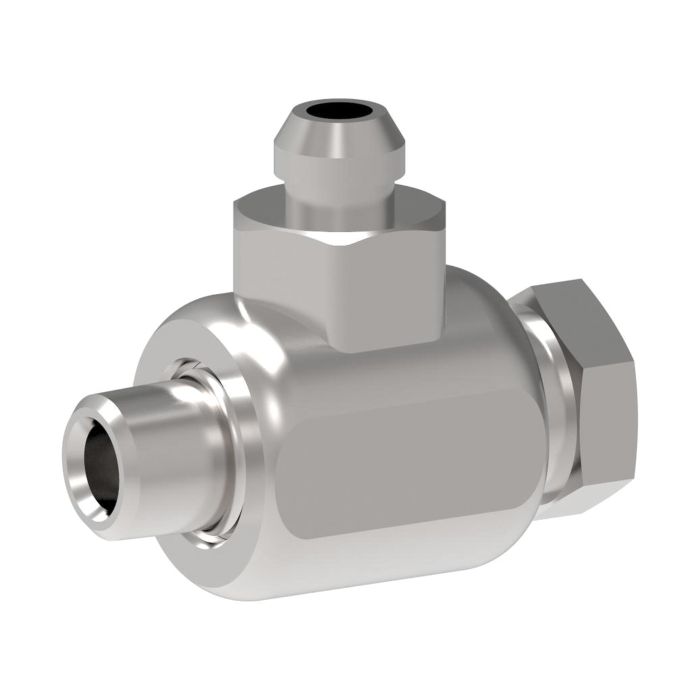

Danfoss / Eaton Swivel Joint

Description & Features

This Danfoss / Eaton Swivel Joint is constructed from durable steel, ensuring reliable performance in demanding hydraulic applications. Designed for a minimum working temperature of -40 degrees, this swivel joint is suitable for a wide range of operating conditions.

Featuring female NPTF end 1 and male NPTF end 2 connections, both with a size of 0.75 inches, this swivel joint offers versatility in connecting hydraulic lines. The end 2 hex size measures 1.25 inches, providing ample grip for secure installation. Aeroquip is the brand associated with this swivel joint.

SKU: FS65007-1212-01

Supplier Part Number (MPN): FS65007-1212-01

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
FNPT, MNPT
Connection Type 1
Female NPTF
Connection Type 2
Male NPTF
Dimension Standards
SAE J1176
Dimensions
3.21 in L x 3.25 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Fluid
Glycol, Hydraulic Oils, Water
Hex Size
1.339 in, 1.25 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
3500 psi
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
Buna-N
Segment Code
C
Series
FS6500 Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-14

Similar Products

Model Number Connection Size 1 Connection Size 2 Connection Type Dimensions Price Action
FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1-11-1/2 Female Pipe Casing Thread To 1-11-1/2 Male Pipe Sleeve Thread

FS65007-1616-01 FS65 Series Swivel Joint

1 in

1 in

FNPT, MNPT

3.91 in L x 3.7 in H

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1/2-14 Female Pipe Casing Thread To 1/2-14 Male Pipe Sleeve Thread

FS65007-0808-01 FS65 Series Swivel Joint

1/2 in

1/2 in

FNPT, MNPT

2.88 in L x 2.65 in H

Danfoss / Eaton Swivel Joint

FS65003-1616-01

1 in

1 in

Male JIC, MNPT

3.91 in L x 3.68 in H

Danfoss / Eaton Swivel Joint 90 Deg FP X

FS65007-0404-01

1/4 in

1/4 in

FNPT, MNPT

2.6 in L x 2.27 in H

Danfoss / Eaton Swivel Joint 90 Deg FP X

FS65007-0606-01

3/8 in

3/8 in

FNPT, MNPT

2.53 in L x 2.28 in H

Danfoss / Eaton Aeroquip FS65 Series Swivel Joint

FS65009-1616-01

1 in

1 in

Male JIC, Male SAE ORB

3.86 in L x 3.68 in H

Product Questions & Answers (1)

Question by: Gene J on Dec 10, 2025, 5:49 PM
Will this swivel joint hold up if the temperature dips way below freezing?
Answer by: Customer Support on Dec 11, 2025, 6:46 PM
It's rated to handle temperatures as low as -40 degrees, so it should work even in very cold conditions.
