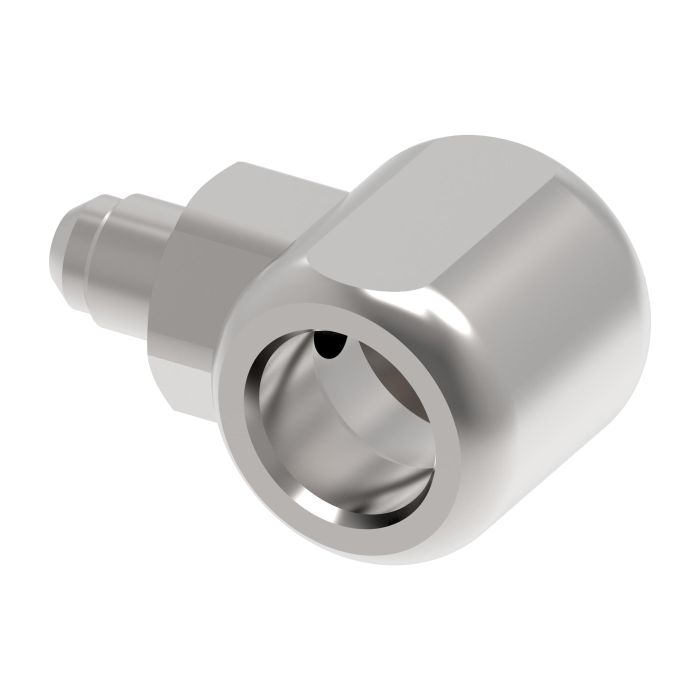

Danfoss / Eaton Swivel Joint 90 Deg FP X

Description & Features

Specifically designed for industrial applications the Danfoss / Eaton FS6500 Series Swivel Joints provide reliable performance in a variety of demanding environments. This sturdy swivel joint features a 90-degree angle ensuring optimal flexibility and alignment for your installations. Manufactured from durable steel it maintains integrity even at a minimum working temperature of -40 degrees.

The joint is equipped with two NPTF female ends both measuring 0.25 inches and a hex size of 0.9375 inches ensuring compatibility with standard components. The absence of adjustable or ratcheting parts underscores its robust maintenance-free design.

Engineered by Danfoss Power Solutions this product aligns seamlessly with existing systems offering extensive support without the need for additional accessories valve checks or calibrations.

MPN: FS65008-0404-01

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
FNPT
Connection Type 1
Female NPTF
Connection Type 2
Female NPTF
Dimensions
2.49 in L x 2.27 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Fluid
Glycol, Hydraulic Oils, Water
Hex Size
0.94 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
5000 psi
nmfc
50
Operating Temperature
-40 to 250 deg F
Segment Code
C
Series
FS65008 Series
Thread Sealant
Without Thread Sealant
Thread Size
1/4-18

Similar Products

Model Number Connection Size 1 Connection Size 2 Connection Type Dimensions Price Action
FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1-11-1/2 Female Pipe Casing Thread To 1-11-1/2 Female Pipe Sleeve Thread

FS65008-1616-01 FS65 Series Swivel Joint

1 in

1 in

FNPT

3.84 in L x 3.7 in H

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1/2-14 Female Pipe Casing Thread To 1/2-14 Female Pipe Sleeve Thread

FS65008-0808-01 FS65 Series Swivel Joint

1/2 in

1/2 in

FNPT, MNPT

3.14 in L x 2.65 in H

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 3/8-18 Female Pipe Casing Thread To 3/8-18 Female Pipe Sleeve Thread

FS65008-0606-01 FS65 Series Swivel Joint

3/8 in

3/8 in

FNPT

2.49 in L x 2.28 in H

DANFOSS / EATON SWIVEL JOINT

FS65002-1212-01

3/4 in

3/4 in

FNPSM Swivel, Male SAE ORB

3.28 in L x 3.09 in H

DANFOSS / EATON SWIVEL JOINT 90 DEG MJIC

FS65003-0808-01

1/2 in

1/2 in

Male JIC, MNPT

2.88 in L x 2.66 in H

Danfoss / Eaton Swivel Joint

FS65003-1212-01

3/4 in

3/4 in

Male JIC, MNPT

3.21 in L x 3.31 in H

DANFOSS / EATON SWIVEL JOINT 90 DEG MJIC

FS65004-1010-01

5/8 in

5/8 in

Male JIC

2.87 in L x 2.77 in H

Danfoss / Eaton Swivel Joint Male JIC X Male JIC

FS65004-1212-01

3/4 in

3/4 in

Male JIC

3.31 in L x 3.31 in H

Danfoss / Eaton Swivel Joint 90 Deg FP X

FS65008-0808-06

1/2 in

1/2 in

FNPT

3.14 in L x 2.65 in H

DANFOSS / EATON #12 FP(RIGID) X #12 FP HYD. SWIVEL

FS65008-1212-01

3/4 in

3/4 in

FNPT

3.21 in L x 3.25 in H

Danfoss / Eaton Swivel Joint

FS65008-1616-06

1 in

1 in

FNPT

3.84 in L x 3.7 in H

DANFOSS / EATON SWIVEL

FS65009-0808-01

1/2 in

1/2 in

Male JIC, Male SAE ORB

2.61 in L x 2.46 in H

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1-1/16-12 Male JIC 37 deg Flare Casing Thread To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) Sleeve Thread

FS65009-1212-01 FS65 Series Swivel Joint

3/4 in

3/4 in

Male JIC, Male SAE ORB

3.31 in L x 3.31 in H

Product Questions & Answers (2)

Question by: Bobby A on Oct 9, 2025, 11:48 AM
What kind of stuff can this swivel joint handle? I mean, fluids-wise.
Answer by: Customer Support on Oct 10, 2025, 2:35 PM
For fluid compatibility, Eaton provides a separate document (23204-005) that you can check out to make sure it's good for your system.
Question by: Dustin D on Jan 16, 2026, 7:30 PM
trying to replace an old swivel, is this the one with 1/4 in female NPTF on both ends and a 90 degree bend?
Answer by: Customer Support on Jan 18, 2026, 11:38 AM
Fit-wise, FS65008-0404-01 is a 90 degree swivel joint with 0.25 inch NPTF female threads on both ends. It also has a 0.9375 inch hex, which helps match it up to what you are pulling out.
