DANFOSS / EATON #12 FP(RIGID) X #12 FP HYD. SWIVEL

Description & Features

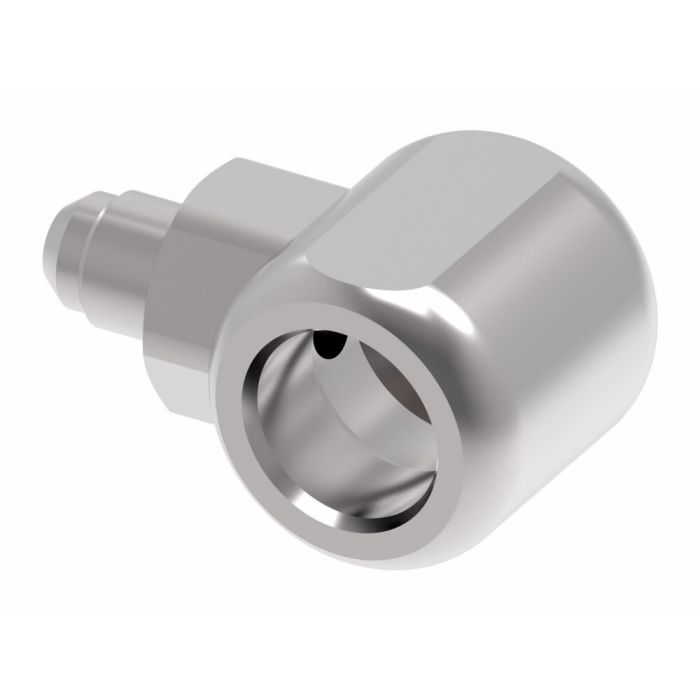

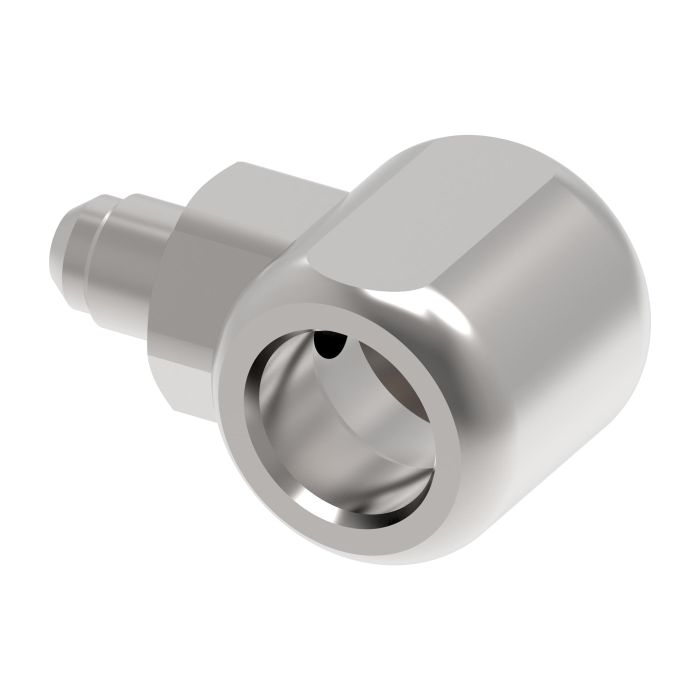

This Aeroquip swivel joint, also known as a DANFOSS / EATON #12 FP(RIGID) X #12 FP HYD. SWIVEL, is constructed of steel for durability and reliability in hydraulic applications.

Featuring female NPTF end connections on both ends, each with a 0.75" size, this swivel joint provides a secure and leak-resistant connection. The design allows for movement and flexibility in hydraulic lines, reducing strain and preventing damage to equipment. Its 1.3125" hex size on end 2 facilitates easy installation and maintenance.

SKU: FS65008-1212-01

Supplier Part Number (MPN): FS65008-1212-01

Alternate Part Numbers: C1FH54, MI-02372734, MINO-00015J28056

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
FNPT
Connection Type 1
Female NPTF
Connection Type 2
Female NPTF
Dimension Standards
SAE J1176
Dimensions
3.21 in L x 3.25 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Fluid
Glycol, Hydraulic Oils, Water
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
3500 psi
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
Buna-N
Segment Code
C
Series
FS6500 Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-14

Similar Products

Model Number Connection Size 1 Connection Size 2 Connection Type Dimensions Price Action
FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1-11-1/2 Female Pipe Casing Thread To 1-11-1/2 Female Pipe Sleeve Thread

FS65008-1616-01 FS65 Series Swivel Joint

1 in

1 in

FNPT

3.84 in L x 3.7 in H

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1/2-14 Female Pipe Casing Thread To 1/2-14 Female Pipe Sleeve Thread

FS65008-0808-01 FS65 Series Swivel Joint

1/2 in

1/2 in

FNPT, MNPT

3.14 in L x 2.65 in H

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 3/8-18 Female Pipe Casing Thread To 3/8-18 Female Pipe Sleeve Thread

FS65008-0606-01 FS65 Series Swivel Joint

3/8 in

3/8 in

FNPT

2.49 in L x 2.28 in H

DANFOSS / EATON SWIVEL JOINT

FS65002-1212-01

3/4 in

3/4 in

FNPSM Swivel, Male SAE ORB

3.28 in L x 3.09 in H

DANFOSS / EATON SWIVEL JOINT 90 DEG MJIC

FS65003-0808-01

1/2 in

1/2 in

Male JIC, MNPT

2.88 in L x 2.66 in H

Danfoss / Eaton Swivel Joint

FS65003-1212-01

3/4 in

3/4 in

Male JIC, MNPT

3.21 in L x 3.31 in H

DANFOSS / EATON SWIVEL JOINT 90 DEG MJIC

FS65004-1010-01

5/8 in

5/8 in

Male JIC

2.87 in L x 2.77 in H

Danfoss / Eaton Swivel Joint Male JIC X Male JIC

FS65004-1212-01

3/4 in

3/4 in

Male JIC

3.31 in L x 3.31 in H

Danfoss / Eaton Swivel Joint 90 Deg FP X

FS65008-0404-01

1/4 in

1/4 in

FNPT

2.49 in L x 2.27 in H

Danfoss / Eaton Swivel Joint 90 Deg FP X

FS65008-0808-06

1/2 in

1/2 in

FNPT

3.14 in L x 2.65 in H

Danfoss / Eaton Swivel Joint

FS65008-1616-06

1 in

1 in

FNPT

3.84 in L x 3.7 in H

DANFOSS / EATON SWIVEL

FS65009-0808-01

1/2 in

1/2 in

Male JIC, Male SAE ORB

2.61 in L x 2.46 in H

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1-1/16-12 Male JIC 37 deg Flare Casing Thread To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) Sleeve Thread

FS65009-1212-01 FS65 Series Swivel Joint

3/4 in

3/4 in

Male JIC, Male SAE ORB

3.31 in L x 3.31 in H

Product Questions & Answers (1)

Question by: Kirk R on May 23, 2025, 8:27 AM
What size are the ends on this swivel, need to make sure it fits right?
Answer by: Customer Support on May 25, 2025, 7:59 AM
Both ends of this swivel joint feature 0.75" connections.
