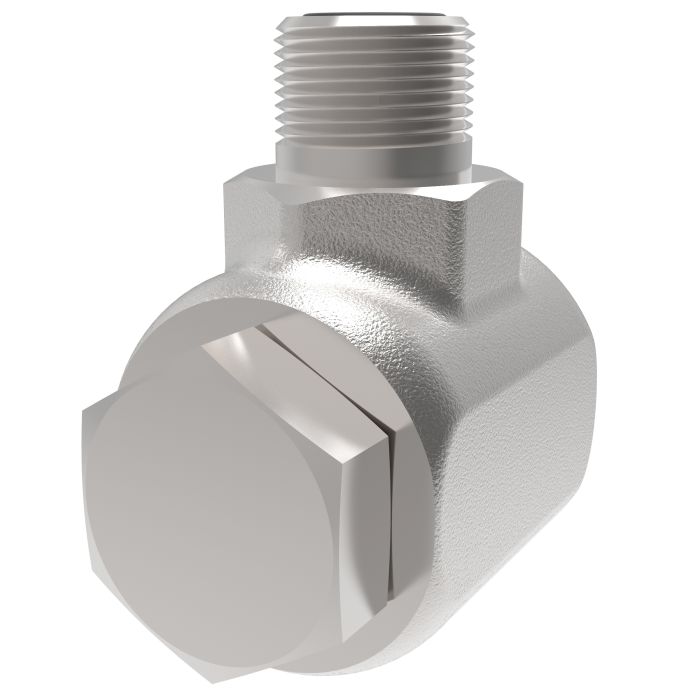

main product photo

DANFOSS / EATON SWIVEL JOINT 90 DEG NJIC

Ask A Question

Description & Features

This DANFOSS / EATON SWIVEL JOINT 90 DEG NJIC is constructed of steel for durability in demanding hydraulic applications. Featuring a 90-degree angle, it facilitates connections in tight spaces.

The swivel joint offers a 0.25-inch swivel size and is designed with one male SAE 37 end and one male ORB end, both sized at 0.25 inches. With a minimum working temperature of -40 degrees, this component is suitable for a range of environments.

SKU: FS65009-0404-01

Supplier Part Number (MPN): FS65009-0404-01

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male JIC, Male SAE ORB
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
Male SAE ORB
Dimensions
2.39 in L x 2.35 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Hex Size
0.94 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-40 to 250 deg F
Segment Code
C
Series
FS65009 Series
Thread Size
7/16-20

Product Questions & Answers (1)

Question by: Dwight B on Dec 26, 2025, 2:22 PM
What size are the ends on this swivel joint?
Answer by: Customer Support on Dec 28, 2025, 1:42 PM
Both ends are a quarter inch, with one being a male SAE 37 and the other a male ORB.
