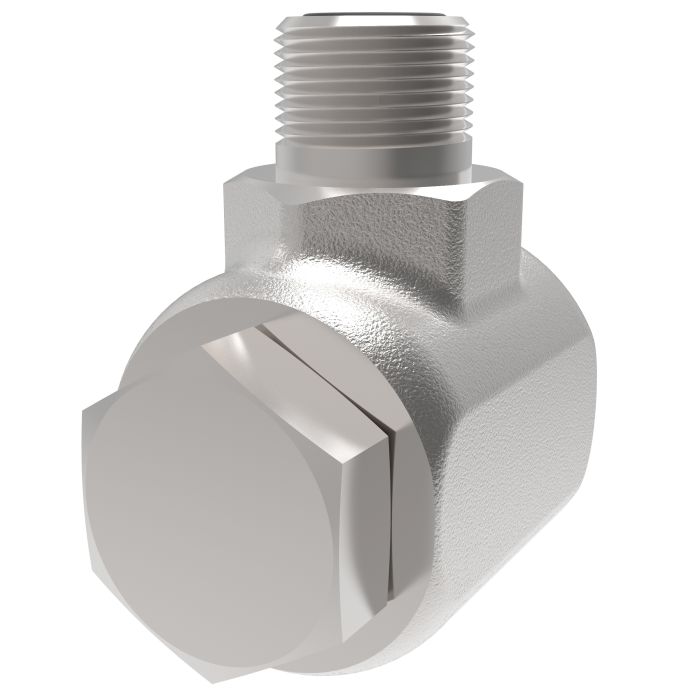

DANFOSS / EATON SWIVEL JOINT 90 DEG MJIC

Designed for routing hydraulic lines at a 90-degree angle while maintaining full rotational movement, the Danfoss / Eaton Swivel Joint 90 Deg Mjic is part of the Fs6500 Series and built for steel-construction durability in demanding hydraulic circuits. The male JIC (SAE 37) inlet and male ORB outlet, both in 5/16 in. sizing, allow this swivel joint to transition between two common hydraulic thread standards without adapters.

Rated for use down to -40°F, this swivel joint suits cold-environment hydraulic applications where thermal cycling and temperature extremes are a concern. With a 0.25 in. swivel size and a 15/16 in. hex on the ORB end, installation fits standard tooling. The steel body holds up in industrial hydraulic systems where corrosion resistance and mechanical integrity are both required. Weight is approximately 1 lb.

SKU: FS65009-0505-01

Supplier Part Number (MPN): FS65009-0505-01
