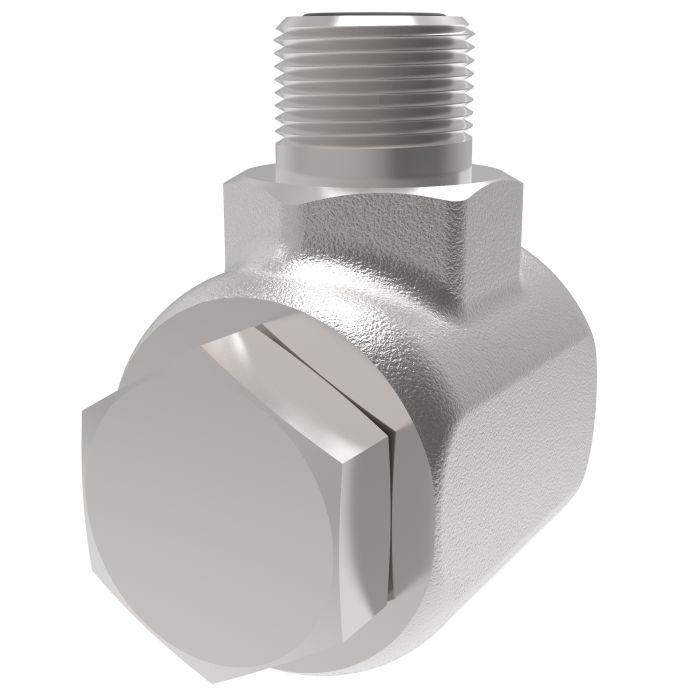

main product photo

DANFOSS / EATON SWIVEL JOINT 90 DEG MJIC

Ask A Question

Description & Features

Designed for hydraulic lines requiring a 90-degree change in direction, the Danfoss / Eaton Swivel Joint 90 Deg Mjic belongs to the Aeroquip FS6500 Series and is built for reliable service in demanding industrial hydraulic systems. The fitting connects a 3/8 in. male JIC (SAE 37) end to a 3/8 in. male O-Ring Boss (ORB) port, with a 15/16 in. hex on the ORB end to facilitate installation and torquing.

Constructed from steel, this swivel joint is rated for a minimum working temperature of -40°F, making it suitable for cold-environment applications. The swivel action allows rotation at the joint, reducing hose and line stress during assembly and in service. This complete swivel joint assembly suits mobile and stationary hydraulic equipment where angular routing between components is required.

SKU: FS65009-0606-01

Supplier Part Number (MPN): FS65009-0606-01

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male JIC, Male SAE ORB
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1176
Dimensions
2.51 in L x 2.36 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Hex Size
0.94 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
5000 psi
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
Buna-N
Segment Code
A
Series
FS6500 Series
Thread Size
9/16-18

Product Questions & Answers (3)

Question by: Shawn J on Feb 17, 2026, 10:16 AM
trying to hook a 3/8 JIC hose up to a 3/8 ORB port but need to turn the corner, is this the right swivel?
Answer by: Customer Support on Feb 18, 2026, 8:02 PM
For a 90 degree turn, it connects a 3/8 in male JIC (SAE 37) end to a 3/8 in male ORB end, and the joint swivels so you can rotate it during assembly to help keep the hose from getting twisted.
Question by: Shane E on Apr 6, 2026, 11:30 AM
Will this swivel joint hold up okay in a colder climate?
Answer by: Customer Support on Apr 7, 2026, 3:20 PM
With a minimum working temperature of -40°F, this swivel joint is designed for reliable service even in cold-environment applications.
Question by: Dustin H on Mar 28, 2026, 1:50 PM
got a hose running at a 90 on a mobile hydraulic setup and the current fitting keeps putting stress on the line during operation, would this swivel joint help with that?
Answer by: Customer Support on Mar 30, 2026, 10:44 AM
Swivel joints in this series are built to rotate at the joint itself, which takes the torsional load off the hose and line during both assembly and normal service. For a 90-degree routing change on mobile equipment, that rotation is exactly what keeps the line from fighting itself over time. The 3/8 male JIC end and 3/8 male ORB port cover a pretty common pairing on mobile hydraulic circuits, so fitment on that type of setup is well within what this part is made for.
