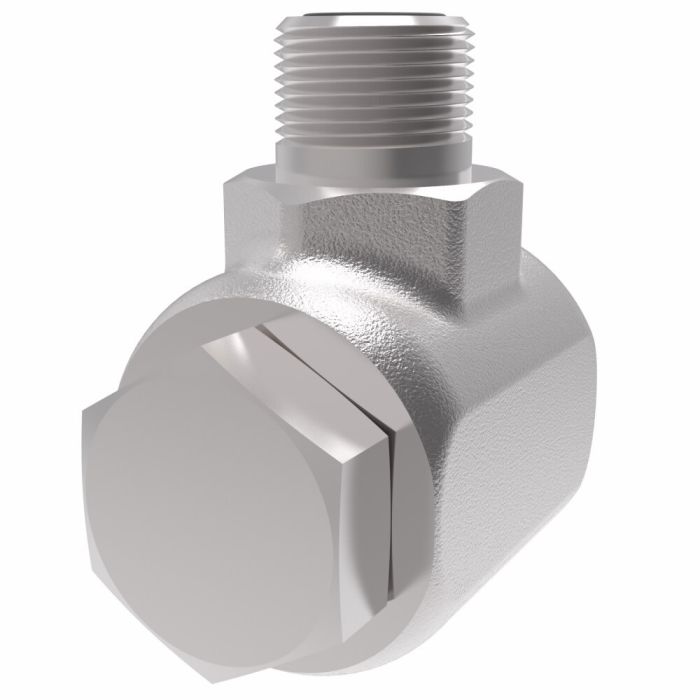

DANFOSS / EATON SWIVEL

Description & Features

Designed for hydraulic systems requiring rotational flexibility between fixed and moving components, the Danfoss / Eaton Swivel is a steel-bodied swivel joint from Eaton Aeroquip's FS6500 Series. It features a 1/2-inch SAE 37 (JIC) male end and a 1/2-inch O-Ring Boss (ORB) male end, making it suited for mixed-port connections common in mobile and industrial hydraulic circuits.

With a swivel size of 3/8 inch, a torque rating of 8 in-lbs, and a rated operating temperature as low as -40°F, this joint maintains reliable performance across demanding temperature ranges. The steel construction provides durability in high-cycle or high-vibration environments where rigid fittings would otherwise place stress on connected lines.

Alternate part number: C1FL86.

SKU: FS65009-0808-01

Supplier Part Number (MPN): FS65009-0808-01

Alternate Part Numbers: C1FL86

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Male JIC, Male SAE ORB
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1176
Dimensions
2.61 in L x 2.46 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Hex Size
0.94 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
3500 psi
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
Buna-N
Segment Code
A
Series
FS6500 Series
Thread Size
3/4-16

Similar Products

Model Number Connection Size 1 Connection Size 2 Connection Type Dimensions Price Action
FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1-11-1/2 Female Pipe Casing Thread To 1-11-1/2 Female Pipe Sleeve Thread

FS65008-1616-01 FS65 Series Swivel Joint

1 in

1 in

FNPT

3.84 in L x 3.7 in H

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1/2-14 Female Pipe Casing Thread To 1/2-14 Female Pipe Sleeve Thread

FS65008-0808-01 FS65 Series Swivel Joint

1/2 in

1/2 in

FNPT, MNPT

3.14 in L x 2.65 in H

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 3/8-18 Female Pipe Casing Thread To 3/8-18 Female Pipe Sleeve Thread

FS65008-0606-01 FS65 Series Swivel Joint

3/8 in

3/8 in

FNPT

2.49 in L x 2.28 in H

DANFOSS / EATON SWIVEL JOINT

FS65002-1212-01

3/4 in

3/4 in

FNPSM Swivel, Male SAE ORB

3.28 in L x 3.09 in H

DANFOSS / EATON SWIVEL JOINT 90 DEG MJIC

FS65003-0808-01

1/2 in

1/2 in

Male JIC, MNPT

2.88 in L x 2.66 in H

Danfoss / Eaton Swivel Joint

FS65003-1212-01

3/4 in

3/4 in

Male JIC, MNPT

3.21 in L x 3.31 in H

DANFOSS / EATON SWIVEL JOINT 90 DEG MJIC

FS65004-1010-01

5/8 in

5/8 in

Male JIC

2.87 in L x 2.77 in H

Danfoss / Eaton Swivel Joint Male JIC X Male JIC

FS65004-1212-01

3/4 in

3/4 in

Male JIC

3.31 in L x 3.31 in H

Danfoss / Eaton Swivel Joint 90 Deg FP X

FS65008-0404-01

1/4 in

1/4 in

FNPT

2.49 in L x 2.27 in H

Danfoss / Eaton Swivel Joint 90 Deg FP X

FS65008-0808-06

1/2 in

1/2 in

FNPT

3.14 in L x 2.65 in H

DANFOSS / EATON #12 FP(RIGID) X #12 FP HYD. SWIVEL

FS65008-1212-01

3/4 in

3/4 in

FNPT

3.21 in L x 3.25 in H

Danfoss / Eaton Swivel Joint

FS65008-1616-06

1 in

1 in

FNPT

3.84 in L x 3.7 in H

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1-1/16-12 Male JIC 37 deg Flare Casing Thread To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) Sleeve Thread

FS65009-1212-01 FS65 Series Swivel Joint

3/4 in

3/4 in

Male JIC, Male SAE ORB

3.31 in L x 3.31 in H

Product Questions & Answers (2)

Question by: Bonnie F on Jul 18, 2025, 9:31 PM
What kinda torque can this swivel handle?
Answer by: Customer Support on Jul 20, 2025, 1:53 PM
This swivel is rated for 8 inch-pounds of torque, so it'll handle most normal applications without issue.
Question by: Tony M on Jun 11, 2025, 3:20 PM
got a hose with a 1/2 JIC on one end and 1/2 ORB on the other. is this swivel the right deal for that kind of hookup?
Answer by: Customer Support on Jun 13, 2025, 6:57 AM
For a mixed-port connection like that, it matches up as 1/2-inch SAE 37 degree (JIC) male on one end and 1/2-inch ORB male on the other, in Eaton Aeroquip’s FS6500 Series.
