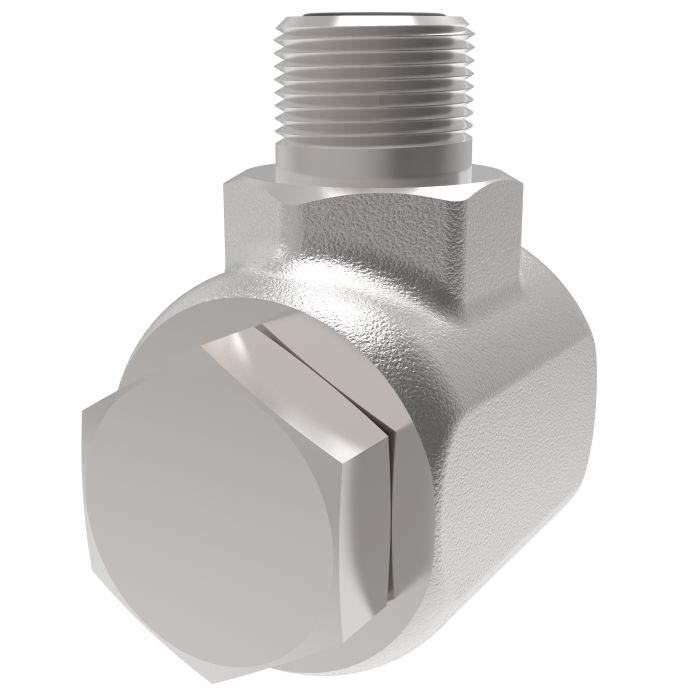

main product photo

DANFOSS / EATON SWIVEL JOINT 90 DEG MJIC

Ask A Question

Description & Features

This Eaton Aeroquip swivel joint features a 90-degree angle and is constructed from durable steel for demanding hydraulic applications. The DANFOSS / EATON SWIVEL JOINT 90 DEG MJIC offers a male SAE 37° end and a male ORB end, both with a 0.625" size.

The hex size for end 2 measures 1.0625". It is designed to withstand a minimum working temperature of -40 degrees.

SKU: FS65009-1010-01

Supplier Part Number (MPN): FS65009-1010-01

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Male JIC, Male SAE ORB
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
Male SAE ORB
Dimensions
2.87 in L x 2.77 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Fluid
Glycol, Hydraulic Oils, Water
Hex Size
1.06 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
3500 psi
nmfc
50
Operating Temperature
-40 to 250 deg F
Segment Code
C
Series
FS65009 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14

Product Questions & Answers (2)

Question by: Marvin H on Sep 13, 2025, 7:12 PM
got a tight spot on a hose run, is this swivel joint the 90 degree kind with a 37 flare on one side and ORB on the other?
Answer by: Customer Support on Sep 15, 2025, 10:14 AM
Built as a 90 degree swivel joint, it has a male SAE 37 degree (JIC) end on one side and a male ORB end on the other, both in 0.625 inch size.
Question by: Kent B on Apr 6, 2026, 4:56 PM
got a tight spot on a loader where the hose needs to turn 90 degrees right at the fitting, does this swivel joint have both ends as male connections or is one of em female?
Answer by: Customer Support on Apr 8, 2026, 6:25 AM
Both ends on this one are male. One end is a male SAE 37 degree flare and the other is a male ORB, both at 0.625 inch size. That setup works well when you need to connect into female ports or couplings on both sides without adapting down to a female fitting on the joint itself.
