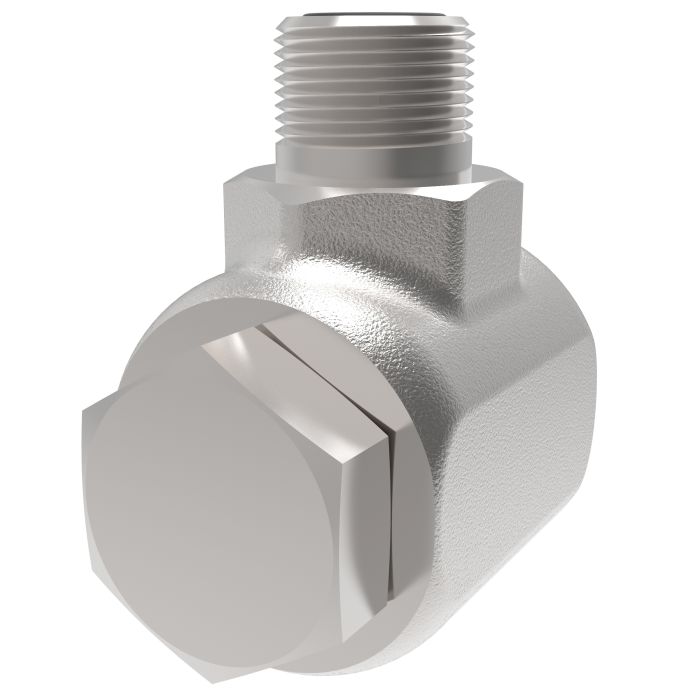

main product photo

Danfoss / Eaton Swivel Joint

Ask A Question

Description & Features

This steel Danfoss / Eaton Swivel Joint features a 1-inch swivel size and is designed for demanding hydraulic applications. This complete swivel joint offers a male SAE 37 end and a male ORB end, both with a size of 1 inch.

With a minimum working temperature of -20°F, this swivel joint ensures reliable performance in challenging environments. The FS65009-1616-06 offers a robust solution for connecting hydraulic lines where movement is required.

SKU: FS65009-1616-06

Supplier Part Number (MPN): FS65009-1616-06

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Male JIC, Male ORB
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
Male ORB
Dimensions
3.86 in L x 3.68 in H
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Fluid
Aromatic solvents, Chemicals, Gasoline
Hex Size
1-5/8 x 1-11/16 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
3000 psi
nmfc
50
Operating Temperature
300 deg F
Segment Code
C
Series
FS65009 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/16-12

Product Questions & Answers (1)

Question by: Larry C on Oct 27, 2025, 6:20 PM
Will this swivel joint hold up if its runnin hydraulic fluid all day long, every day?
Answer by: Customer Support on Oct 29, 2025, 3:53 PM
This swivel joint is designed for demanding hydraulic applications, so continuous use shouldn't be a problem.
