Other 5500 SwivelS Male Pipe X FemalePI

Description & Features

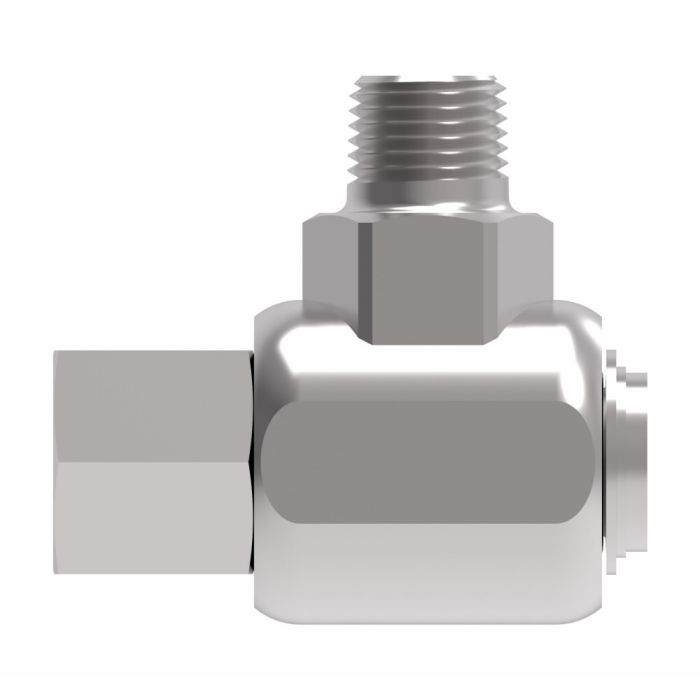

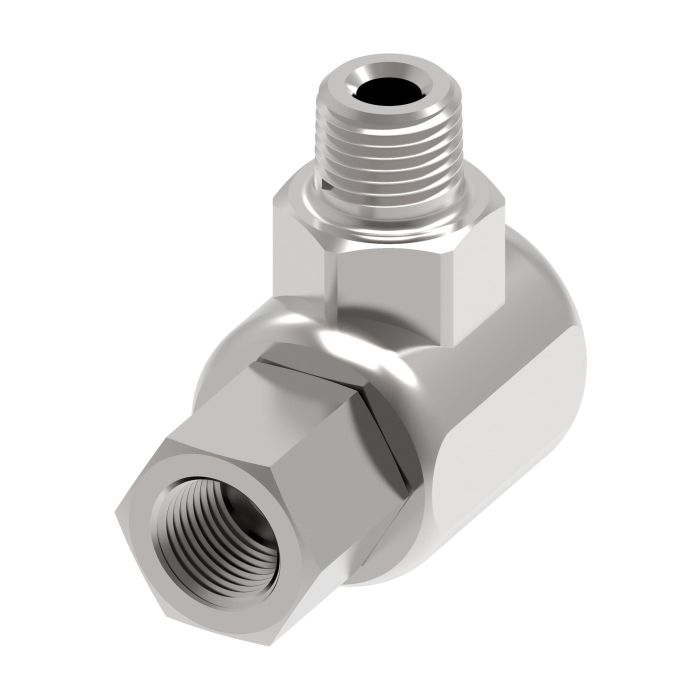

The Other 5500 SwivelS Male Pipe X FemalePI is a steel swivel joint with male and female NPTF end connections. Each end measures 0.5 inches.

This Aeroquip swivel joint features a 1.0625-inch hex size. It withstands minimum working temperatures of -40 degrees.

SKU: FS65015-0808-01

Supplier Part Number (MPN): FS65015-0808-01

Brand Aeroquip® by Danfoss	Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type FPT, MPT	Connection Type 1 Male Pipe	Connection Type 2 Female Pipe	Dimensions 3.14 in L x 2.39 in H	Finish Zinc-Plated	Fitting Type Swivel Joint	Fluid Glycol, Hydraulic Oils, Water	Hex Size 1.06 in	Material Steel	Material Construction Steel	Maximum Operating Pressure 3500 psi	Operating Temperature -40 to 250 deg F	Segment Code C	Series FS65015 Series	Thread Sealant Without Thread Sealant	Thread Size 1/2-14

Question by: Vince K on Sep 11, 2025, 1:23 PM

Reckon this would hold up alright in a hydraulic system pushing around -40 degrees?

Answer by: Customer Support on Sep 13, 2025, 1:03 PM

It's rated to handle minimum working temperatures of -40 degrees, so it should do the job.
