04MFS-04FFSS 45 degrees

Description & Features

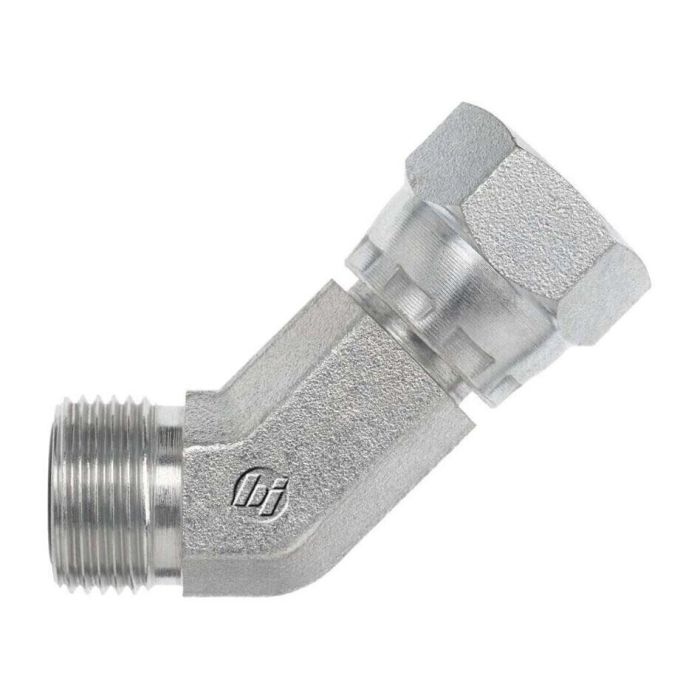

A 45-degree forged elbow fitting designed for hydraulic line routing where angled connections are required, the 04MFS-04FFSS 45 degrees carries a 1/4 in. tube OD and uses 9/16-18 thread on both the male flareless (A) and female flareless swivel (B) ends. Forged construction contributes to consistent dimensional integrity and mechanical strength suited to hydraulic system demands.

Both ports share the same thread size, making this a same-size elbow within the Brennan FS6502-FG series. Hex and flat dimensions of 0.687 in. and 0.562 in. respectively support standard tooling for installation. With an L1 length of 0.63 in. and L2 of 0.94 in., the fitting is compact enough for space-constrained routing applications.

SKU: FS6502-04-04-FG

Supplier Part Number (MPN): FS6502-04-04-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS6502-04-04-FG	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Duane B on Aug 17, 2025, 7:13 PM

So this thing's got the same size threads on both ends, right? Just wanna make sure before I order.

Answer by: Customer Support on Aug 19, 2025, 6:43 AM

That's correct. This fitting has a 9/16-18 thread size on both the male flareless and female flareless swivel ends.
