MFS-FFSS 45

Ask A Question

Description & Features

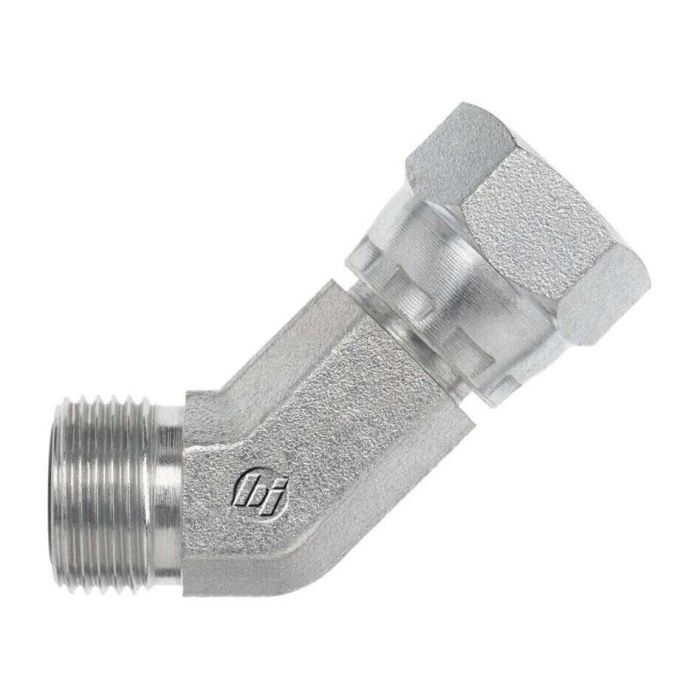

The MFS-FFSS 45 brought to you by Brennan Industries Inc is a robust adapter designed for industrial applications. This 08MFS-08FFSS 45-degree elbow forged adapter features a hex size of 0.938 and a tube outer diameter of 1/2 ensuring a secure and precise fit for your components.

With its A and B thread sizes of 13/16-16 and drill dimensions of 0.378 and 0.358 respectively this product facilitates reliable connectivity in complex configurations. The inclusion of Jj flats measuring 0.75 further enhances the adaptability and ease of installation.

Dimensionally the product measures 0.80 inches in L1 length and extends to 1.32 inches in L2 length providing the necessary reach and alignment for demanding industrial setups.

MPN: FS6502-08-08-FG

Supplier Part Number: FS6502-08-08-FG

Specifications

Brand
BRENNAN
a Drill Dimensions
0.378 in
b Drill Dimensions
0.358 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female ORFS Swivel, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Female SAE ORFS Swivel
Dimension Standards
SAE J1453
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
0.94 in
jj Flats Dimensions
3/4 in
Material
Steel
Material Construction
AISI C1045 Steel
Operating Temperature
-40 to 250 deg F
Series
FS6502-FG Series
Thread Size
13/16-16
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Product Questions & Answers (3)

Question by: Eddie T on Mar 9, 2026, 8:51 AM
part number FS6502-08-08-FG, is that the same thing as AFF2133T0808S or are those two different parts?
Answer by: Customer Support on Mar 11, 2026, 6:13 AM
Same part, just different numbering systems from different suppliers. FS6502-08-08-FG is the Brennan Industries number, and AFF2133T0808S is an alternate cross-reference. BR-FS6502-08-08 is another one you might see floating around. All three point to this exact 45-degree forged elbow adapter with the 1/2 inch tube OD and 13/16-16 thread on both ends.
Question by: Billy G on Mar 2, 2026, 8:20 PM
What size is that hex head on this elbow fitting? Gotta make sure I got the right wrench handy.
Answer by: Customer Support on Mar 4, 2026, 6:57 AM
The hex size on this Brennan Industries 45-degree elbow is 0.938 inches.
Question by: Ricky M on Jan 17, 2026, 3:57 PM
got a tight spot on a line, is this the 45 degree elbow adapter with 13/16-16 threads on both ends?
Answer by: Customer Support on Jan 18, 2026, 8:25 PM
For a 45 degree forged elbow setup, it matches 13/16-16 threads on both the A and B ends, so it is set up as 13/16-16 to 13/16-16.
