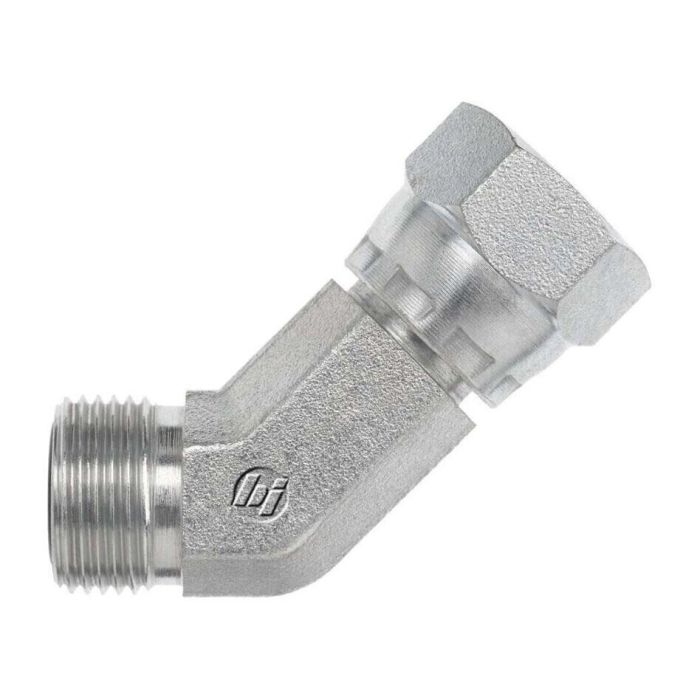

main product photo

MFS-FFSS 45 DEG

Ask A Question

Description & Features

Designed for reliability and precision, this 45-degree forged elbow is an essential component for hydraulic systems requiring robust connections. Featuring a 5/8 inch tube outer diameter and 1-14 thread, this elbow provides efficient fluid flow and secure connections. Manufactured by Brennan Industries, it boasts a durable construction capable of withstanding demanding environments.

The MFS-FFSS 45 DEG elbow is part of the FS6502-FG series, ensuring compatibility with a wide range of industrial applications. Its dimensions, including a 0.92-inch L1 length and 1.44-inch L2 length, offer versatility for various installation requirements. The hex and flats dimensions provide easy handling during installation and maintenance. This product is ideal for professionals seeking reliable hydraulic components.

SKU: FS6502-10-10-FG

Supplier Part Number (MPN): FS6502-10-10-FG

Alternate Part Numbers: AFF2133T1010S, FF6502-10-10

Specifications

Brand
BRENNAN
a Drill Dimensions
0.484 in
b Drill Dimensions
0.453 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female ORFS Swivel, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Female SAE ORFS Swivel
Dimension Standards
SAE J1453
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1-1/8 in
jj Flats Dimensions
1.062 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6502-FG Series
Thread Size
1-14S
Tube Outside Diameter
5/8 in

Product Questions & Answers (1)

Question by: Bobby C on Jul 6, 2025, 6:05 PM
Will this elbow work with standard hydraulic fittings?
Answer by: Customer Support on Jul 7, 2025, 6:25 PM
This 45-degree forged elbow features a 1-14 thread, so you'll want to make sure your fittings are compatible with that.
