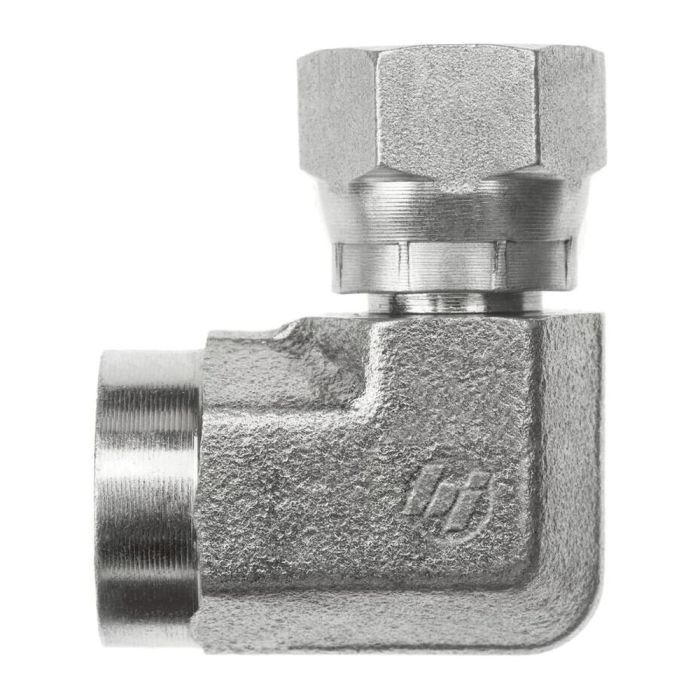

90 DEGREE ELBOW 3/8 FP X 3/8 FF

Description & Features

Forged for reliable performance in tight-angle hydraulic connections, this 90 Degree Elbow 3/8 FP x 3/8 FF from Brennan Industries is built to handle direction changes in compact hydraulic assemblies. The forged construction contributes to consistent dimensional integrity and durability under working conditions.

The fitting connects a 3/8-18 female pipe thread on one end to an 11/16-16 female face seal port on the other, making it well suited for systems that transition between NPT and face seal configurations. With a tube O.D. of 3/8 inch, a hex flat dimension of 0.875 inch, and an overall profile engineered for space-conscious installations, this elbow fits neatly within the Brennan FS6503-FG series. The C hex measures 0.812 inch, supporting proper torque application during assembly.

SKU: FS6503-06-06-FG

Supplier Part Number (MPN): FS6503-06-06-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS6503-06-06-FG	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Lyle M on Nov 4, 2025, 7:03 AM

If I need to change the direction of a hydraulic line in a tight spot, is this elbow fitting up to the task?

Answer by: Customer Support on Nov 5, 2025, 6:55 PM

Forged construction helps this 90-degree elbow handle those tricky direction changes, especially where space is at a premium in your hydraulic setup.
