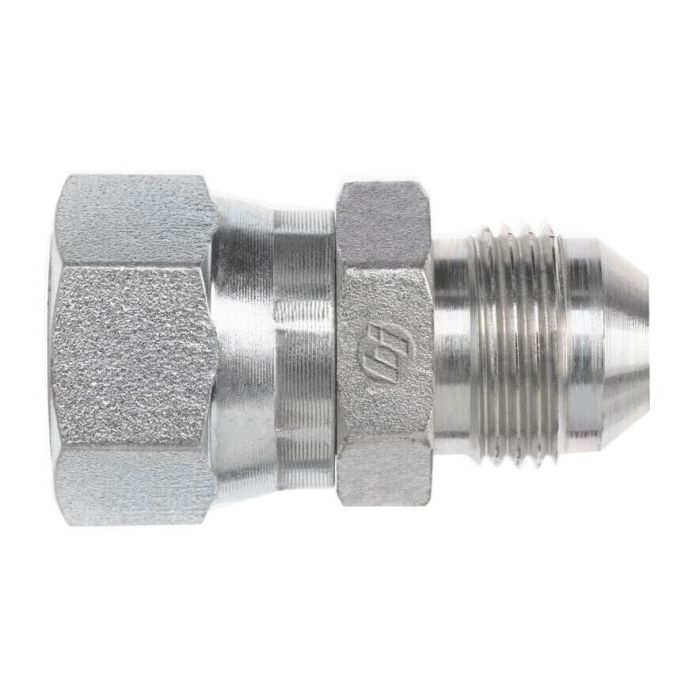

10FFSS-12MJ STRAIGHT

Description & Features

A straight face seal fitting designed for connecting 3/4 inch OD tube (JIC male) to a 5/8 inch OD tube (female face seal) end, the 10FFSS-12MJ Straight from Brennan Industries is built for reliable performance in hydraulic line connections where leak-free face seal integrity is required. The straight configuration simplifies in-line routing where directional changes are not needed.

Thread sizes are 1-1/16-12 on the male JIC end and 1-14 on the female face seal end, with a hex dimension of 1.125 inches on both ends and an overall length of 2.354 inches. Part of Brennan's FS6504 series, this fitting is suited for medium- to high-pressure hydraulic systems where a secure metal-to-metal seal is essential.

SKU: FS6504-10-12

Supplier Part Number (MPN): FS6504-10-12

Specifications

Brand BRENNAN	a1 Drill Dimensions 0.453 in	a2 Drill Dimensions 0.609 in	Connection Size 1 5/8 in	Connection Size 2 3/4 in	Connection Type Female ORFS Swivel, Male JIC	Connection Type 1 Female SAE ORFS Swivel	Connection Type 2 Male SAE JIC	Dimension Standards SAE J1453, SAE J514	Dimensions 2.354 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 1-1/8 in	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 5000 psi	Series FS6504 Series	Thread Size 1-14 x 1-1/16-12	Tube Outside Diameter 3/4 in

Similar Products

Model Number	Connection Size 1	Connection Size 2
FS6504-08-08 Female ORS To Male JIC Adapter	1/2 in	1/2 in
FS6504-12-12 Female ORS To Male JIC Adapter	3/4 in	3/4 in
FS6504-10-10 Female ORS To Male JIC Adapter	5/8 in	5/8 in
FS6504-06-06 Female ORS To Male JIC Adapter	3/8 in	3/8 in
FS6504-16-16 Female ORS To Male JIC Adapter	1 in	1 in
FS6504-04-04 Female ORS To Male JIC Adapter	1/4 in	1/4 in
FS6504-06-04	3/8 in	1/4 in
FS6504-20-20	1-1/4 in	1-1/4 in
FS6504-24-24	1-1/2 in	1-1/2 in

Product Questions & Answers (1)

Question by: Frank W on Nov 12, 2025, 4:49 PM

Will this fitting hold up in a hydraulic system that sees some pretty high pressure, or am I gonna be chasing leaks?

Answer by: Customer Support on Nov 14, 2025, 6:21 AM

Designed for medium- to high-pressure hydraulic systems, this fitting is built to provide a secure, metal-to-metal seal which is essential in those kinds of applications.
