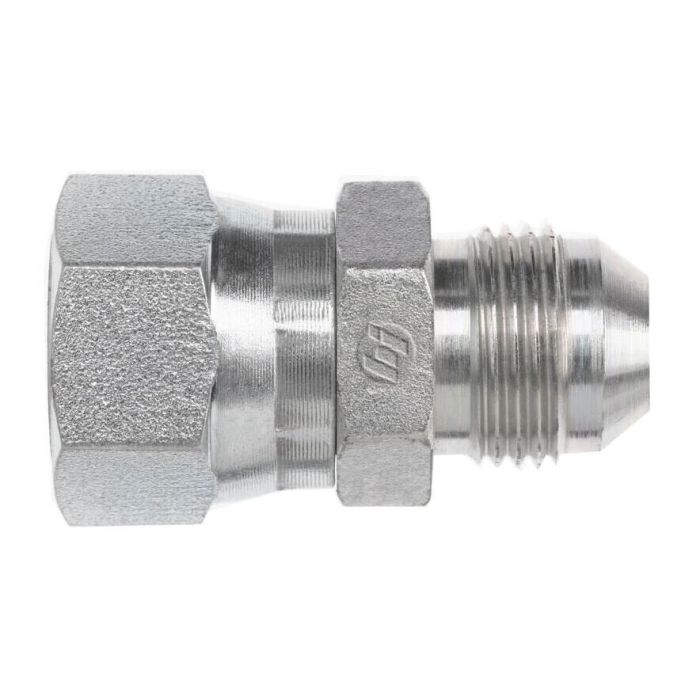

main product photo

24FFSS-24MJ STRAIGHT

Ask A Question

Description & Features

The 24FFSS-24MJ STRAIGHT, also known as a straight fitting, features a 1-1/2 inch tube OD on both ends.

This FS6504 series straight fitting has a 2-12 thread on the A1 side and a 1-7/8-12 thread on the A2 side. The A1 and A2 drill size is 1.260. It measures 2.840 inches in total length, with a C hex size of 2.250 inches and an H hex size of 2.000 inches.

SKU: FS6504-24-24

Supplier Part Number (MPN): FS6504-24-24

Alternate Part Numbers: AFF2209T2424S, FF6504-24-24

Specifications

a1 Drill Dimensions
1.26 in
a2 Drill Dimensions
1.26 in
Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Female ORFS Swivel, Male JIC
Connection Type 1
Female SAE ORFS Swivel
Connection Type 2
Male SAE JIC
Dimension Standards
SAE J1453, SAE J514
Dimensions
2.84 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
2 in, 2-1/4 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
3000 psi
Series
FS6504 Series
Thread Size
2-12 x 1-7/8-12
Tube Outside Diameter
1-1/2 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Dwayne C on Jan 25, 2026, 6:07 AM
Hey, will this fitting hold up if I'm usin' it for somethin' that vibrates a good bit?
Answer by: Customer Support on Jan 26, 2026, 10:13 AM
This straight fitting, part number FS6504-24-24, should work fine. It's made to handle standard hydraulic applications where you need a solid, leak-free connection between two 1-1/2 inch tubes.
