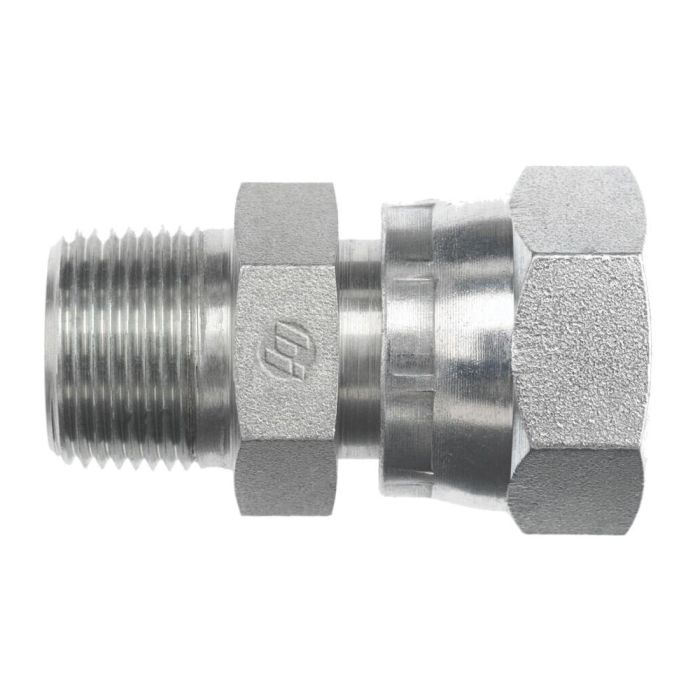

04MP-04FFSS STRAIGHT

A straight hydraulic adapter from Brennan Industries, the 04MP-04FFSS Straight connects a 1/4-18 male pipe thread to a 9/16-18 female face seal port in a compact, inline configuration. With an overall length of 1.520 inches and a hex size of 0.688 inches across the body, it is sized for tight installation environments where space is limited.

Designed for 1/4 inch OD tube applications, this fitting features a 0.281 inch bore on the male pipe end and a 0.165 inch bore on the face seal end. The 0.625 inch hex on the face seal side allows for straightforward torquing during assembly. As part of Brennan's FS6505 series, it is suited for hydraulic lines requiring a reliable transition between NPT and face seal connection types.

SKU: FS6505-04-04

Supplier Part Number (MPN): FS6505-04-04
