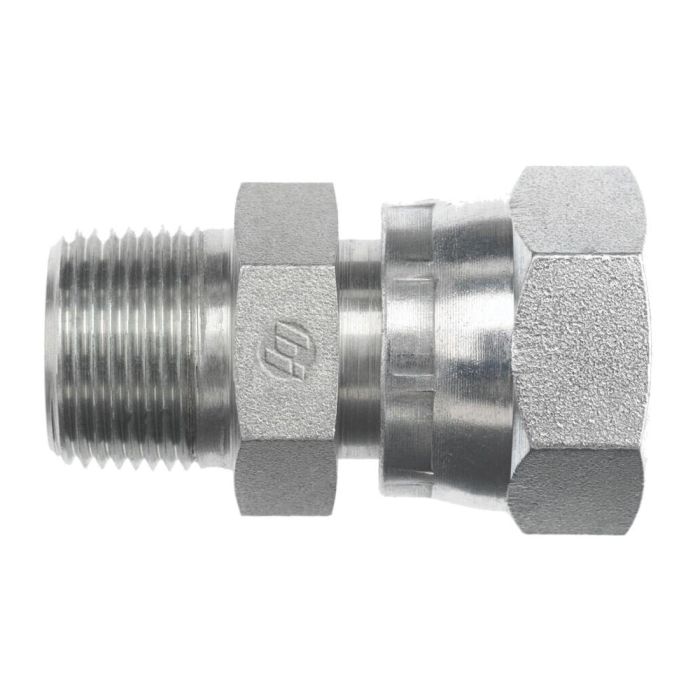

04MP-06FFSS STRAIGHT

Description & Features

This straight fitting features a 3/8 inch tube OD, suitable for various hydraulic applications. The 04MP-06FFSS STRAIGHT has a Brennan A hole of 0.281 inches with a 1/4-18 Brennan A thread and a Brennan B hole of 0.264 inches with an 11/16-16 Brennan B thread.

It also features a 0.812 inch Brennan C Hex and a 0.750 inch Brennan H Hex. The Brennan L Length is 1.650 inches. This fitting belongs to the FS6505 Brennan series.

SKU: FS6505-04-06

Supplier Part Number (MPN): FS6505-04-06

Specifications

Brand BRENNAN	a Hole Dimensions 0.281 in	b Hole Dimensions 0.264 in	Connection Size 1 1/4 in	Connection Size 2 3/8 in	Connection Type Female ORFS Swivel, MNPT	Connection Type 1 Male SAE NPTF	Connection Type 2 Female SAE ORFS Swivel	Dimension Standards SAE J1453, SAE J476	Dimensions 1.65 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 0.812 x 0.75 in	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Series FS6505 Series	Thread Size 11/16-16, 1/4-18	Tube OD 3/8 in	Tube Outside Diameter 0.38 in

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
FF6505-12-12	3/4 in	3/4 in	1-3/16-12 x 3/4-14
FS6505-04-04	1/4 in	1/4 in	1/4-18 x 9/16-18
FS6505-08-08	1/2 in	1/2 in	13/16-16 x 13/16-16 x 1/2-14
FS6505-16-16	1 in	1 in	1-7/16-12 x 1-11-1/2
FS6505-20-20	1-1/4 in	1-1/4 in	1-11/16-12, 1-1/4-11-1/2

Product Questions & Answers (1)

Question by: Travis B on Jun 22, 2025, 9:06 PM

Reckon this fittin'll hold up alright in a hydraulic system runnin' pretty steady?

Answer by: Customer Support on Jun 24, 2025, 6:58 AM

Built for various hydraulic applications, this straight fitting should perform well under normal operating conditions. Its 3/8 inch tube OD and robust construction contribute to its durability.
